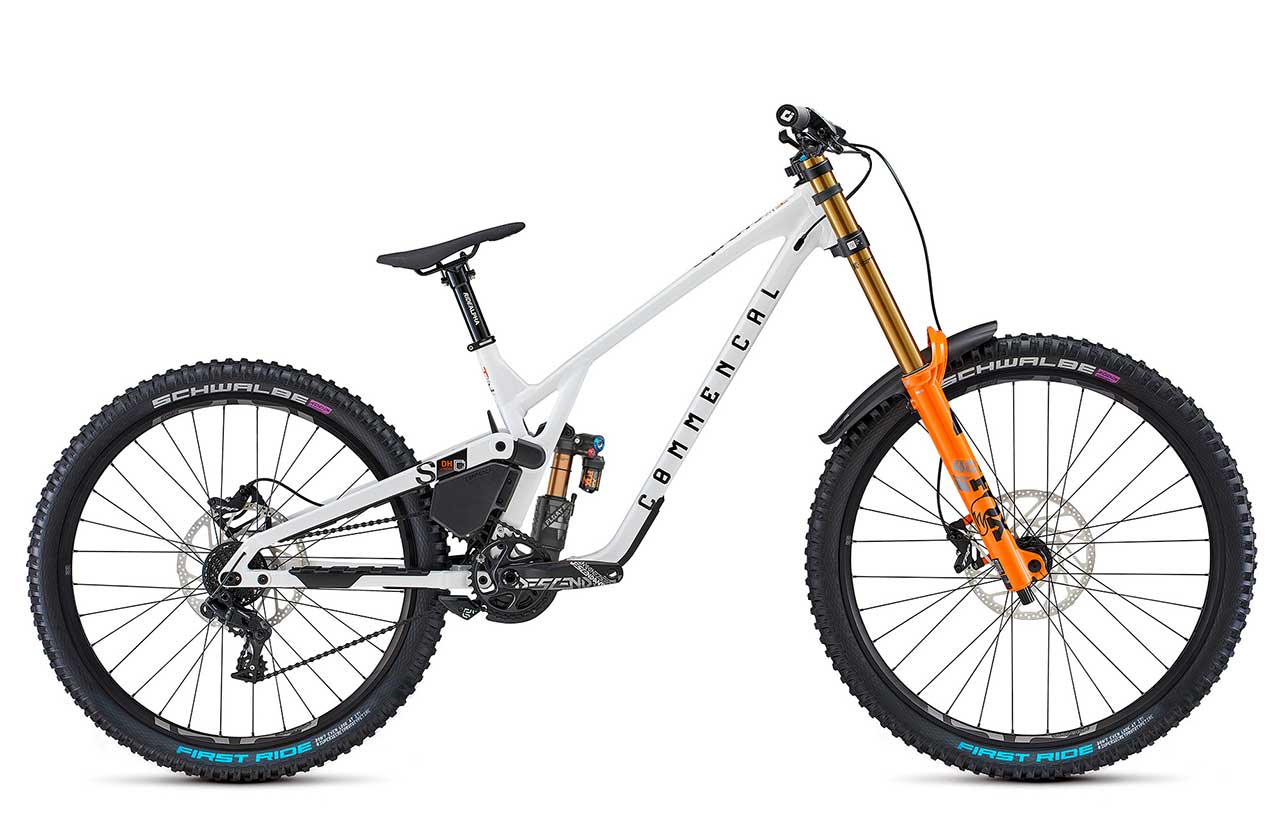

SUPREME DH V5 SIGNATURE AIR

税込価格 ¥1,650,000（税抜価格 ¥1,500,000）完成車
サイズ：S, M, L

Pure White

SPECIFICATIONS

FRAME	Supreme DH V5 29/27, 220 mm travel on S / M / L 29", Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
SHOCK	FOX FLOAT X2 Factory 250 x 75 mm, HSC, LSC, HSR, LSR, rebound
FORK	FOX 40 Factory, 203 mm travel 29", Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 Tokens
HEADSET	ACROS ZS56 / ZS56 Alloy cups, sealed bearings
STEM	RIDE ALPHA DH 40 40 mm extension, direct mount, 31.8 mm
BAR	RIDE ALPHA R27 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS	ODI Longneck Soft pro compound, single clamp, black
BRAKES	TRP DH-R Evo, 4 pistons, resin pads Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width
SHIFTERS	SRAM GX DH 7 sp
CHAIN GUIDE	E13 LG1 + Bottom Guide 32-34t
REAR MECH	SRAM GX DH 7 sp
BOTTOM BRACKET	SRAM DUB Pressfit
CRANKSET	TRUVATIV Descendant DH, 165 mm crank arms, DUB Chainring: TRUVATIV Descendant DH X-Sync, 34t
CHAIN	KMC X11EL Black
CASSETTE	E13 LG1 Plus DH 7 sp, 9-24t
RIMS	E13 LG1 Plus DH REAR: 27.5'', 32h, 30mm inner width on S / M / L - FRONT: 29'', 32h, 30mm inner width on S / M / L
HUBS	Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH Rear: 32h, sealed bearings, 12x157mm, black - Front: 32h, sealed bearings, 20x110mm Boost, black
SPOKES / NIPPLES	-
TYRES	Rear: SCHWALBE First Ride - Front: SCHWALBE First Ride REAR: 27.5"x2.4", Super DH, Addix Ultra Soft on S / M / L, Tubeless Easy - FRONT: 29"x2.4", Super DH, Addix Ultra Soft on S / M / L , Tubeless Easy
SEATPOST	RIDE ALPHA Super Light 31.6 mm, 250 mm, Alloy 7075
SADDLE	FIZIK Gravita Alpaca X5 MG rails, flexible "wings"
WEIGHT	- kg / - lb Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PEDALS INCLUDED	No
COLOUR	Pure White Shiny Finish
ACCESSORIES	Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, pick-up pad, tubeless valves, fork fender specific Fox 40

GEOMETORY

SIZE	① SEAT TUBE LENGTH	② SEAT TUBE ANGLE	③ HEAD TUBE ANGLE	④ HEAD TUBE LENGTH	⑤ WHEEL BASE	⑥ TOP TUBE LENGTH	⑦ CHAIN STAY LENGTH	⑧ BOTTOM BRACKET HEIGHT	⑨ FORK LENGTH	⑩ STANDOVER HEIGHT	⑪ REACH	⑫ STACK	Height adaptation
S Low	370	67,5	63,7	112	1250	593	440	3	612	-	435	649	158~170
S High	370	67	63,2	112	1243	587	442,5	-3	612	-	430	645	158~170
M Low	370	67,5	63,7	112	1287	618	440	3	612	-	460	649	168-180
M High	370	67	63,2	112	1290	612	442,5	-3	612	-	454	645	168-180
L Low	370	67,5	63,7	112	1315	646	440	3	612	-	488	649	178-190
L High	370	67	63,2	112	1318	640	442,5	-3	612		482	645	178-190

1SEAT TUBE LENGTH
2SEAT TUBE ANGLE
3HEAD TUBE ANGLE
4HEAD TUBE LENGTH
5WHEEL BASE
6TOP TUBE LENGTH
7CHAIN STAY LENGTH
8BOTTOM BRACKET HEIGHT
9FORK LENGTH
10STAND-OVER HEIGHT
11REACH
12STACK
