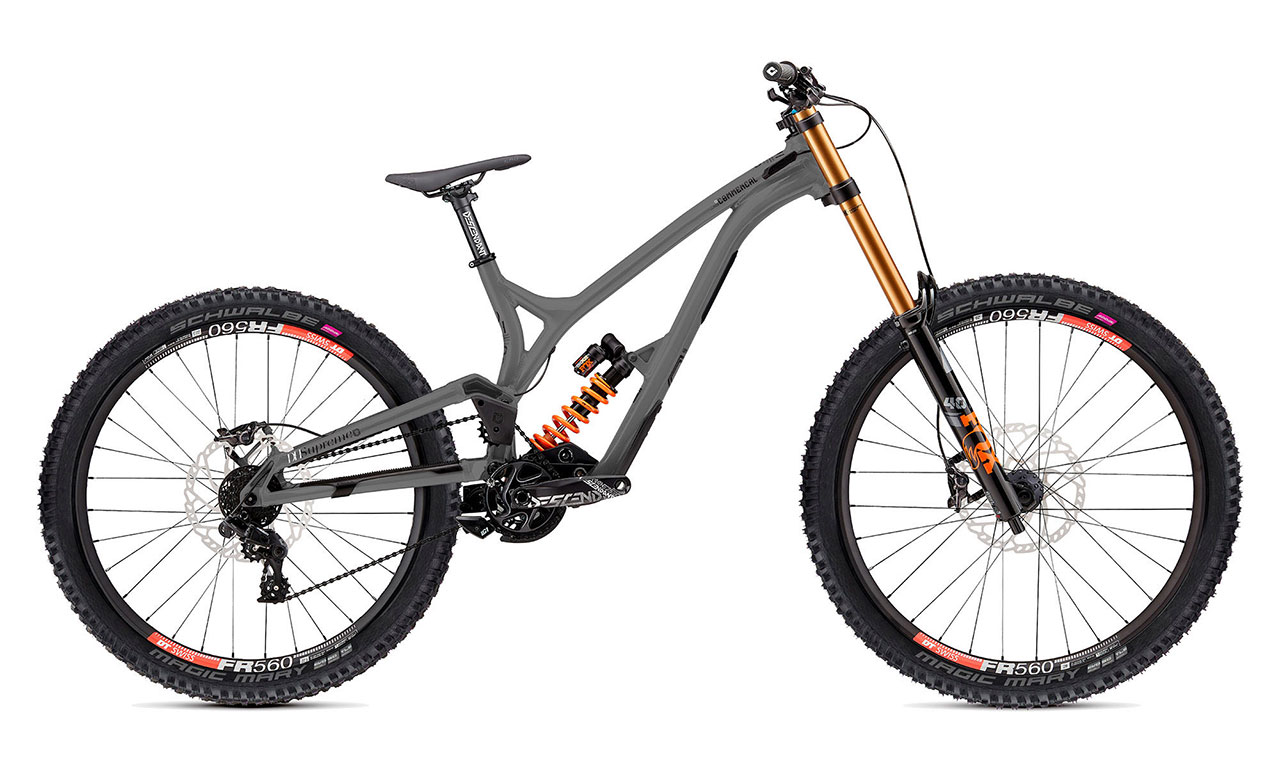

SUPREME DH 29/27 TEAM

Silver Matte / 税込価格 ¥1,320,000（税抜価格 ¥1,200,000）完成車
サイズ：S, M, L

Silver Matte

Frame	MY22 SUPREME DH, 200mm, 29"/27.5" on S/M/L & 29" on XL
Shock	FOX DHX2 Factory, 250x75mm, HSC, LSC, HSR, LSR, spring rates: 375lbs on S, 425lbs on M, 475lbs on L, 525lbs on XL
Fork	FOX 40 Factory, 203mm travel, Fit Grip 2 damper, HSC, LSC, HSR, LSR, Float Evol, 2 Tokens
Headset	ACROS ZS56/ZS56
Stem	RIDE ALPHA DH 40, 40mm, 31.8mm
Bar	RIDE ALPHA R27, 31.8mm, 780mm width, 27mm rise on S/M/L / RIDE ALPHA R27, 31.8mm, 800mm width, 27mm rise on XL
Grips	ODI Elite Motion
Brakes	SHIMANO XT, 4 pistons, 220mm
Shifters	SRAM GX DH, 7s
Chainguide	E13 LG1 + Bottom Guide, 28-34t
Rear derailleur	SRAM GX DH, 7s
Bottom Bracket	SRAM DUB, Pressfit
Cranks	TRUVATIV Descendant DH, 165mm
Chainring	TRUVATIV Descendant DH X-Sync, 34t
Chain	KMC X11EL
Cassette	SRAM GX DH, 7s, 11-25t
Rims	Front : DT SWISS FR560, 29", 32h, 30mm inner width / Rear : DT SWISS FR560, 27.5", 32h, 30mm inner width on S/M/L & 29", 32h, 30mm inner width on XL
Hubs	DT SWISS 350, 32h
Spokes	DT SWISS Competition
Front Tire	SCHWALBE Magic Mary, 29"x2.4", Super DH, Addix Ultra Soft
Rear Tire	SCHWALBE Magic Mary, 27.5"x2.4"mm, Super DH, Addix Ultra Soft on S/M/L & 29"x2.4", Super DH, Addix Ultra Soft on XL
Seatposts	TRUVATIV Descendant DH, 31.6mm, 350mm
Saddle	FIZIK Gravita Alpaca X5
Accessories	Chainstay protector, seatsaty protector, fork bumpers, downtube protector, roller cover, fork fender specific Fox 40
Sizes	S, M, L
Colors	Silver Matte

SIZE	① SEAT TUBE LENGTH	② SEAT TUBE ANGLE	③ HEAD TUBE ANGLE	④ HEAD TUBE LENGTH	⑤ WHEEL BASE	⑥ TOP TUBE LENGTH	⑦ CHAIN STAY LENGTH	⑧ BOTTOM BRACKET HEIGHT	⑨ FORK LENGTH	⑩ STANDOVER HEIGHT	⑪ REACH	⑫ STACK	Height adaptation
S	400	67	63.5	112	1256	593	448	-9	607	-	435	624	151~170
M	400	67	63	112	1290	612	456	-4	607	-	455	620	168~180
L	400	67	62.5	112	1320	638	456	-4	607	-	480	620	178~190
