META AM

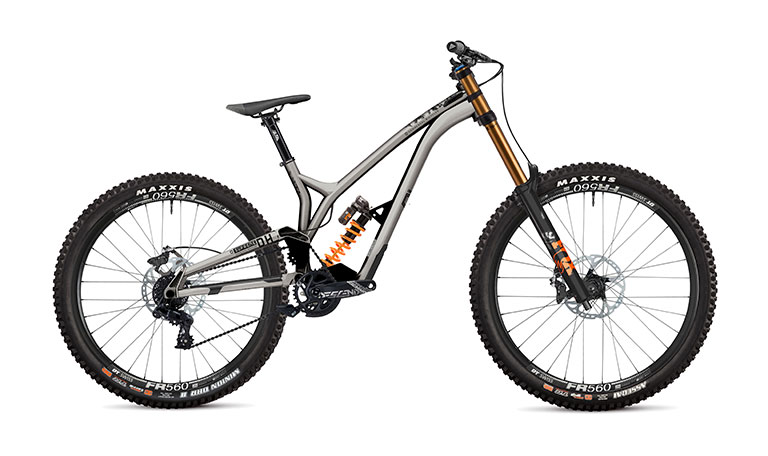

SUPREME DH 27/29 SIGNATURE

価格(税別)¥949,800完成車
サイズ:S, M, L, XL

SPECIFICATIONS

Frame 2021 SUPREME DH 27/29, 200mm travel
Shock FOX DHX2 Factory
Fork FOX 40 Factory Fit Grip2, 200mm, White lowers
Headset ACROS Alloy cups ZS56/ZS56
Stem RIDE ALPHA DH Direct Mount, 40mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31,8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SHIMANO XT 4 pistons, 203mm
Shifters SRAM GX DH, 7sp
Chainguide E13 LG1+ Bottom Guide
Rear derailleur SRAM GX DH, 7sp
Bottom Bracket SRAM DUB Pressfit
Cranks TRUVATIV Descendant DH, 165mm
Chainring TRUVATIV Descendant DH, 34t
Chain KMC X11, 11sp
Cassette SRAM GX DH, 7sp, 11-25t
Wheels DT SWISS FR560 / DT 350 / DT comp spokes / Custom Wheelset
Front Tire MAXXIS Assegai, 29x2.50WT, 3C, DD, TR
Rear Tire MAXXIS Minion DHR II, 27.5x2.40WT, 3C, DH
Seatposts RIDE ALPHA Super Light, 31.6mm
Saddle FIZIK Alpaca Gravita X5
Accessories Down tube protector, chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors Dirt

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 400 67 63.5 112 1256 593 448 -9 607 - 435 624 151~170
M 400 67 63 112 1290 612 456 -4 607 - 455 620 168~180
L 400 67 62.5 112 1320 638 456 -4 607 - 480 620 178~190
XL 400 67 62.5 112 1345 660 456 -4 607 - 505 620 188~210
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
