SUPREME

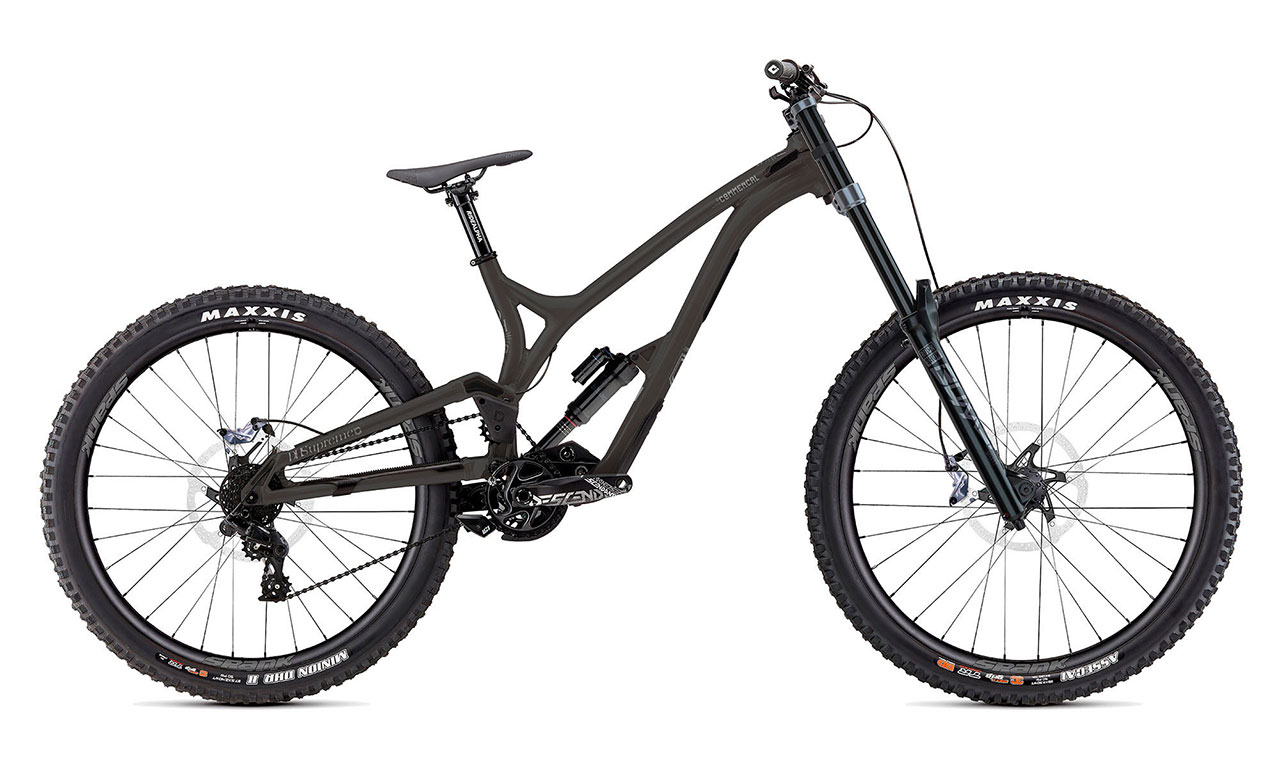

SUPREME DH 29/27 ESSENTIAL

¥790,900(本体価格¥719,000)完成車
サイズ:S, M, L

SPECS

Frame MY22 SUPREME DH, 200mm travel, 29"/27.5" on S/M/L & 29" on XL
Shock ROCKSHOX Super Deluxe Select, 250x75mm, LSC, rebound, DebonAir, 1 Token
Fork ROCKSHOX Boxxer Select, 200mm travel, Charger 2.1 damper, DebonAir, rebound, 0 Token
Headset ACROS ZS56/ZS56
Stem RIDE ALPHA DH 40, 40mm, 31.8mm
Bar RIDE ALPHA R27, 31.8mm, 780mm width, 27mm rise on S/M/L / RIDE ALPHA R27, 31.8mm, 800mm width, 27mm rise on XL
Grips ODI Elite Motion
Brakes TRP DH-R Evo, 4 pistons, 220mm
Shifters SRAM GX DH, 7s
Chainguide E13 LG1 + Bottom Guide, 28-34t
Rear derailleur SRAM GX DH, 7s
Bottom Bracket SRAM DUB, Pressfit
Cranks TRUVATIV Descendant DH, 165mm
Chainring TRUVATIV Descendant DH X-Sync, 34t
Chain KMC X11EL
Cassette SRAM GX DH, 7s, 11-25t
Rims Front : SPANK 359, 29", 32h, 30mm inner width / Rear : SPANK 359, 27.5", 32h, 30mm inner width on S/M/L & 29", 32h, 30mm inner width on XL
Hubs Front : FORMULA DHL-93, 32h / Rear : FORMULA DHG-150, 32h
Spokes SAPIM Race
Front Tire MAXXIS Assegai, 29"x2.5", Wide Trail, 3C MaxxGrip, Double Down, Tubeless Ready
Rear Tire MAXXIS DHR II, 27.5"x2.4", Wide Trail, 3C MaxxGrip, DH casing, Tubeless Ready on S/M/L & 29"x2.4, Wide Trail, 3C MaxxGrip, DH casing, Tubeless Ready on XL
Seatposts RIDE ALPHA Super Light, 31.6mm, 250mm
Saddle FIZIK Gravita Alpaca X5
Accessories Chainstay protector, seatsaty protector, fork bumpers, downtube protector, roller cover
Sizes S, M, L
Colors Dark Slate Matte

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 400 67 63.5 112 1256 593 448 -9 607 - 435 624 151~170
M 400 67 63 112 1290 612 456 -4 607 - 455 620 168~180
L 400 67 62.5 112 1320 638 456 -4 607 - 480 620 178~190
XL 400 67 62.5 112 1345 660 456 -4 607 - 505 620 188~210
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
