META TR

RAMONES 24

¥69,080(本体価格¥62,800)完成車
サイズ:24

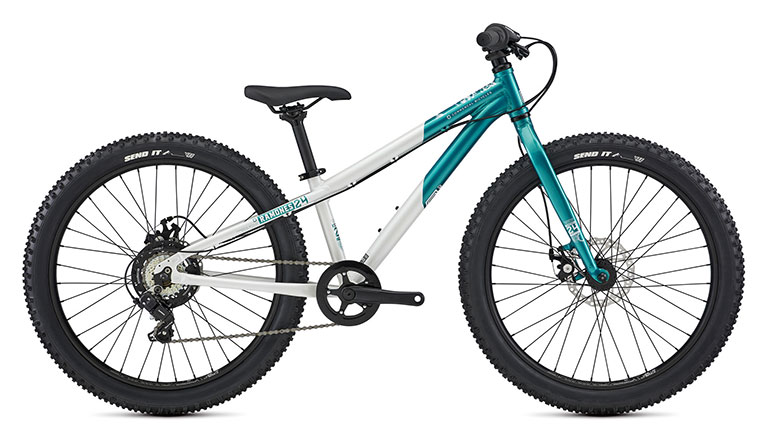

PEARL WHITE / ELECTROPLATE LAGOON サムネイル

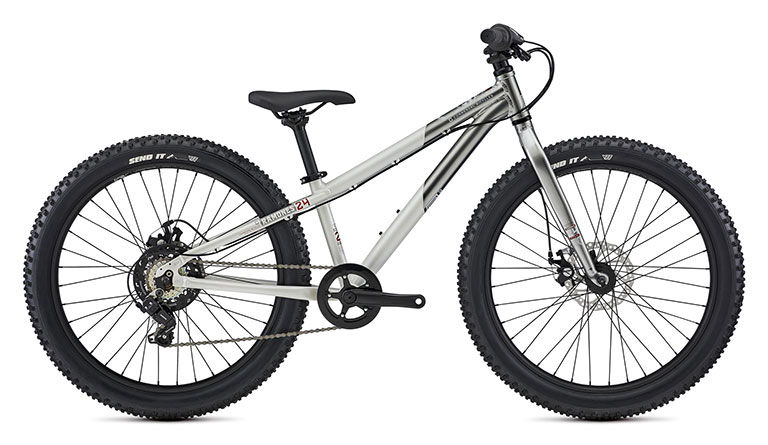

PEARL WHITE / CHROME サムネイル

SPECIFICATIONS

Frame 2020 Ramones 24, alloy 6061
Fork 2020 Ramones 24 rigid fork, alloy 6061, postmount disc brake mount
Headset 1-1/8" loose ball
Stem COMMENCAL alloy 0°, 30mm length, 25.4mm diameter
Bar COMMENCAL alloy 6061, 620mm width, 25.4mm diameter, 1" rise
Grips COMMENCAL kids, 130mm
Brakes Mechanical disc brakes with kids specific Tektro levers and Jagwire cables
Shifters SRAM MRX Comp 7sp
Rear Mech SHIMANO Tourney 7sp
Cranks Kids 152mm steel, 32t chainring with double chainguard
Chain KMC 1/2"x3/32 7sp
Cassette SHIMANO Tourney 7sp 14-34
Rims COMMENCAL 24" alloy 6061, 36h, 30mm inner width
Hubs 36 holes, QR front & rear
Sporks 2mm steel black - black nipples
Tires VEETIRECO Crown Gem 24x2.6"
Seatpost COMMENCAL, Alloy black, 27.2mm
Saddle Kids saddle, black
Accessories Bell, lights
Colours PEARL WHITE / ELECTROPLATE LAGOON , PEARL WHITE / CHROME

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
24 280 74 69 105 978 499 410 -30 398 629 347 496 128~150
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
