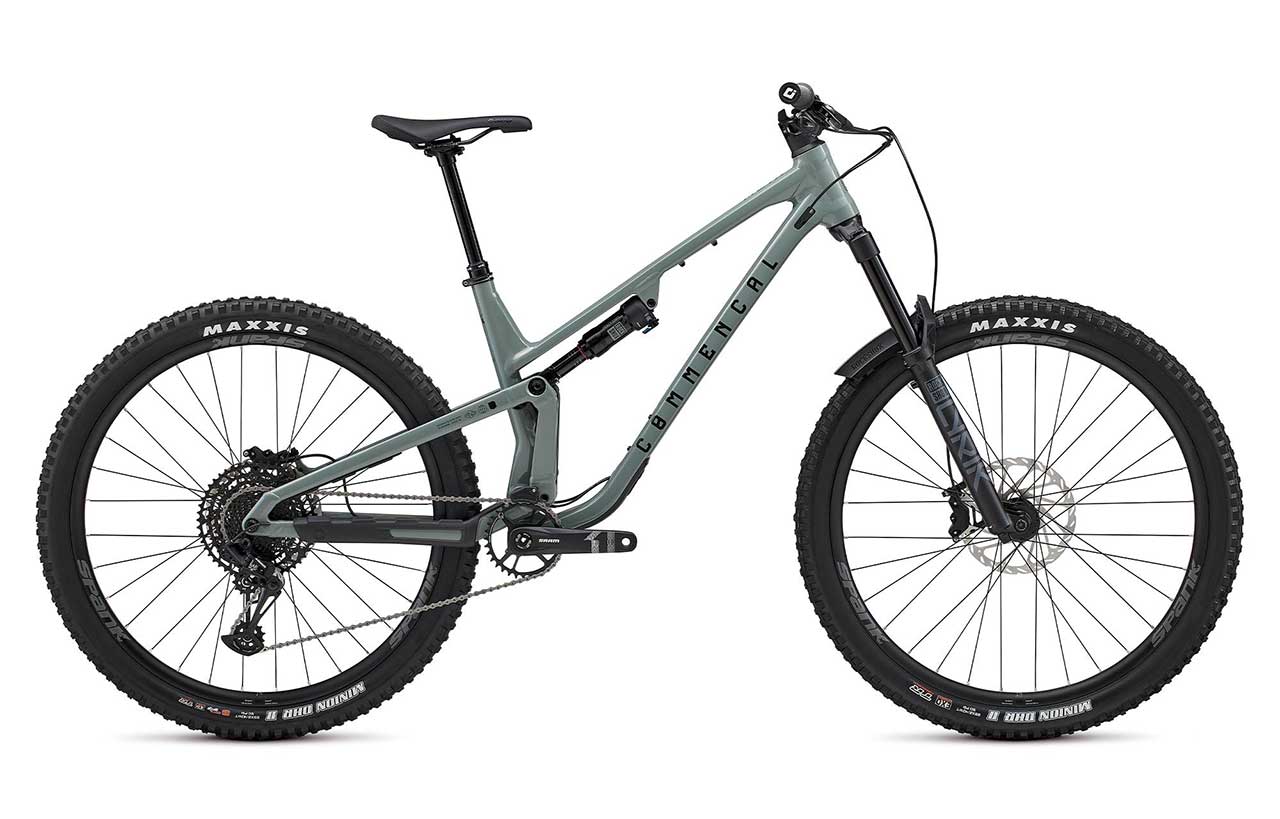

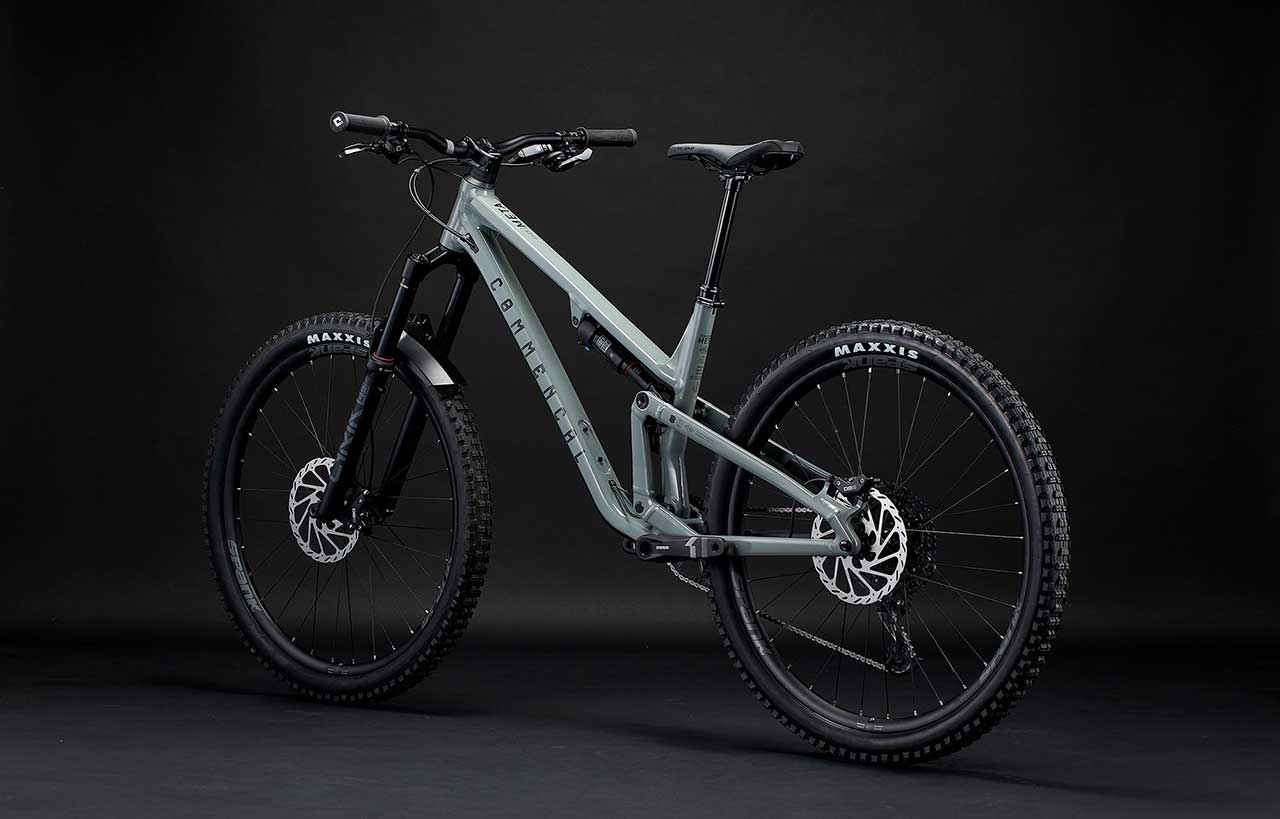

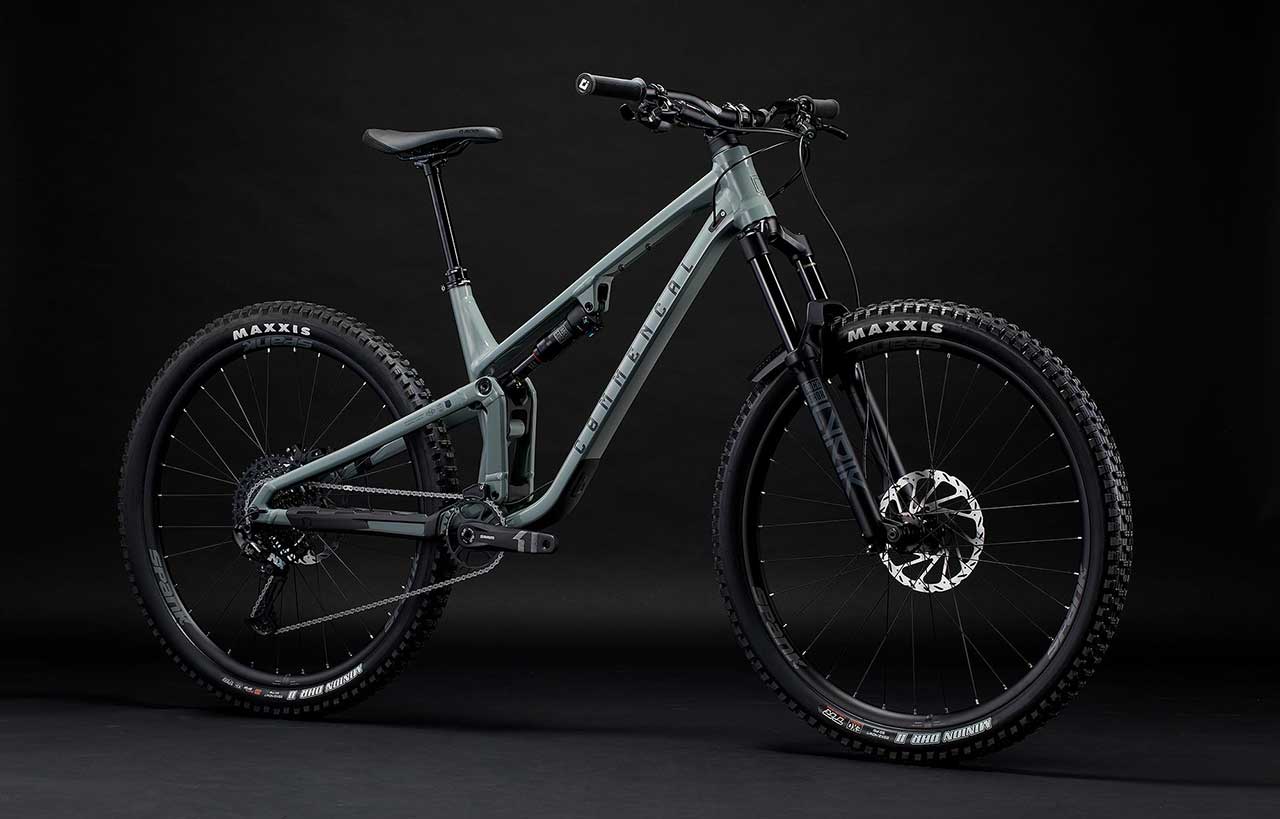

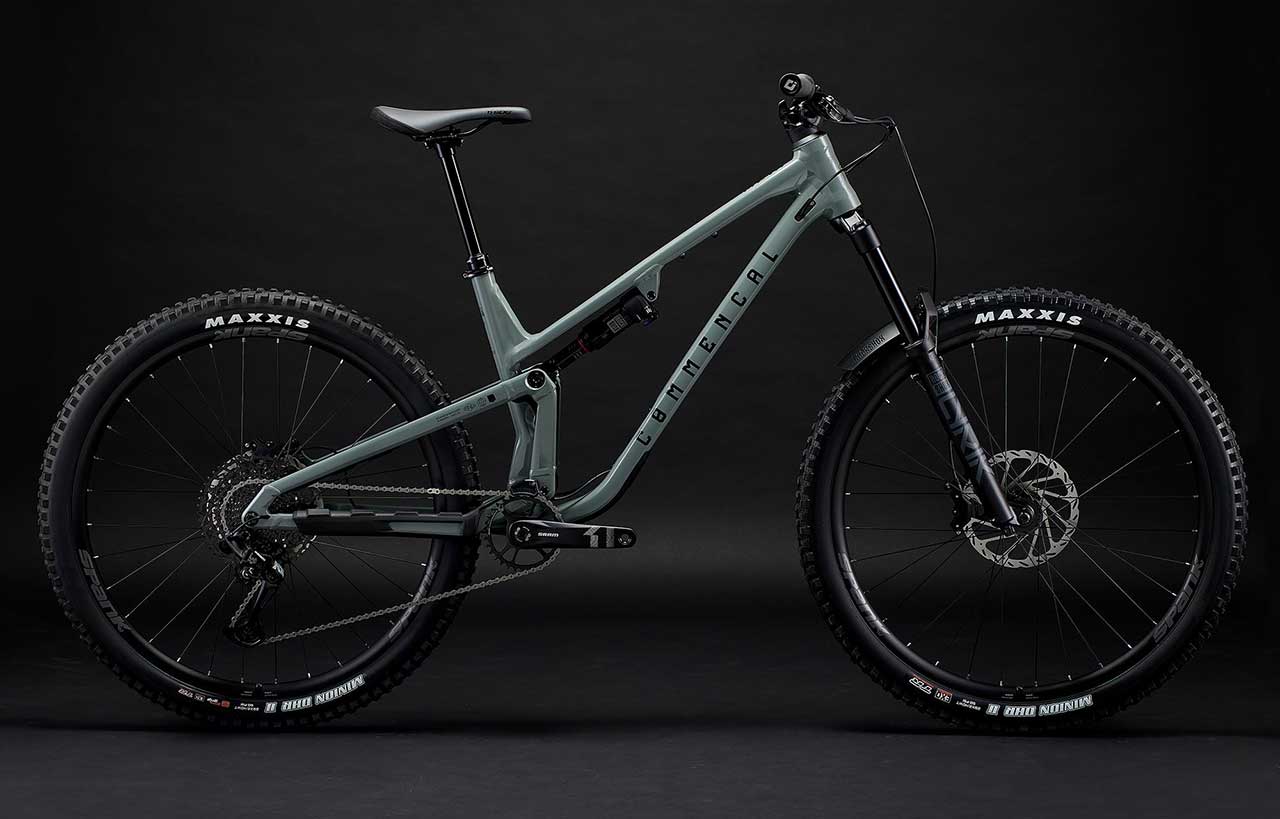

META V5 RACE
税込価格 ¥1.045,000（税抜価格 ¥950,000）完成車
サイズ：S, M, L
サイズ：S, M, L
PYRITE GREY
SPECS
| Frame | META V5, 150 mm travel 29", Alloy 6066, triple butted tubes, T4, T6 |
|---|---|

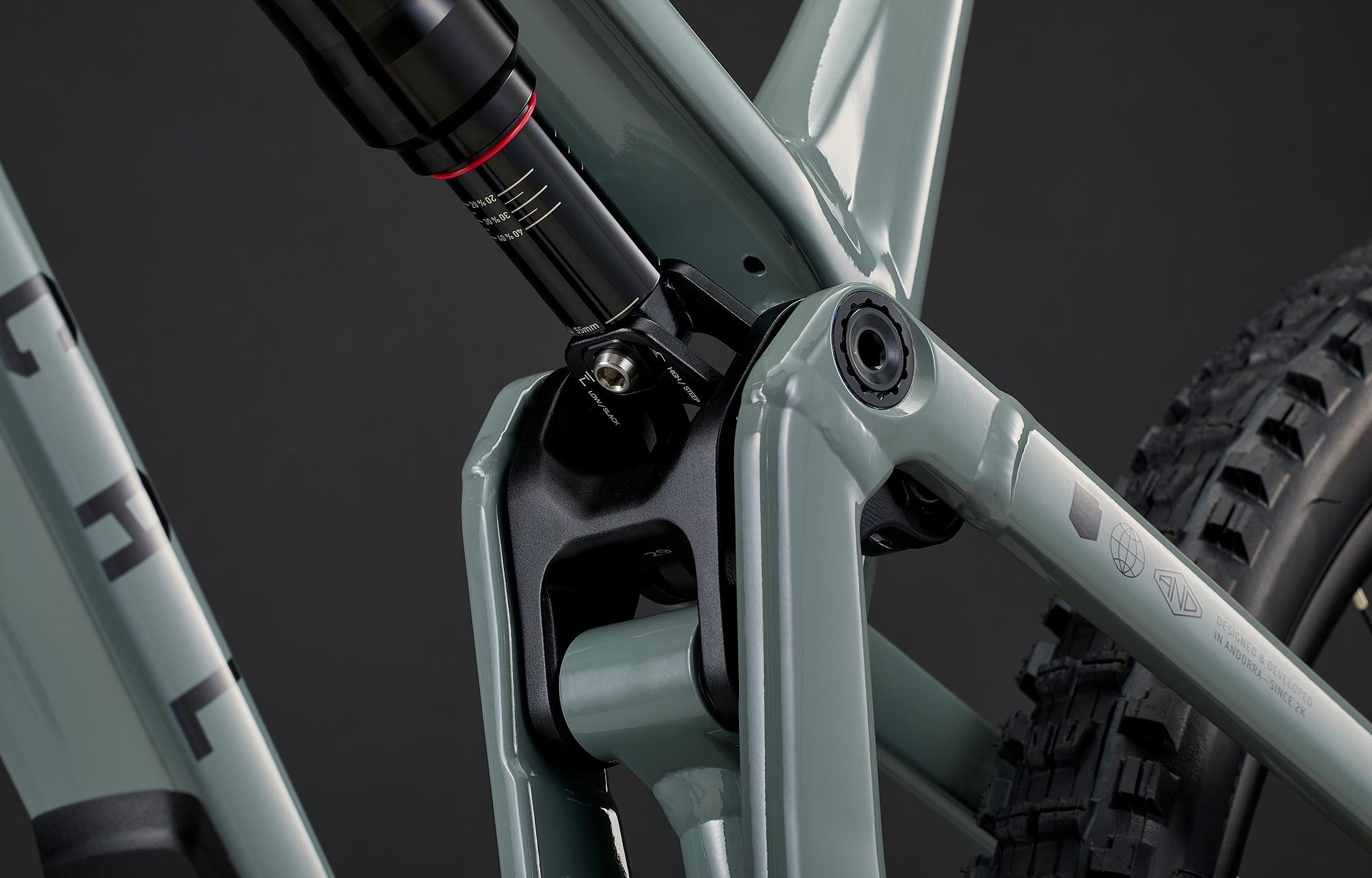

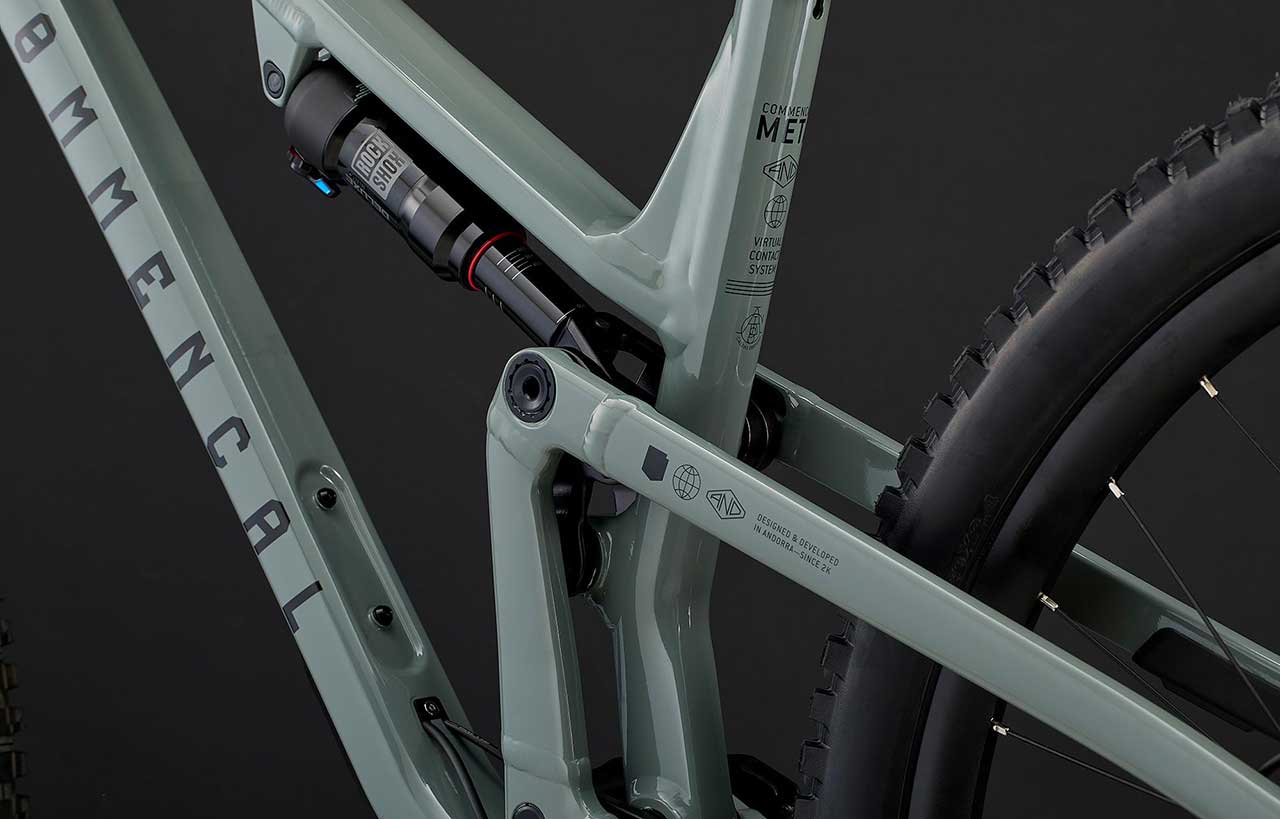

| Shock | ROCKSHOX Deluxe Select + 210 x 55 mm, RT damper, DebonAir, rebound, 2 position adjustment |

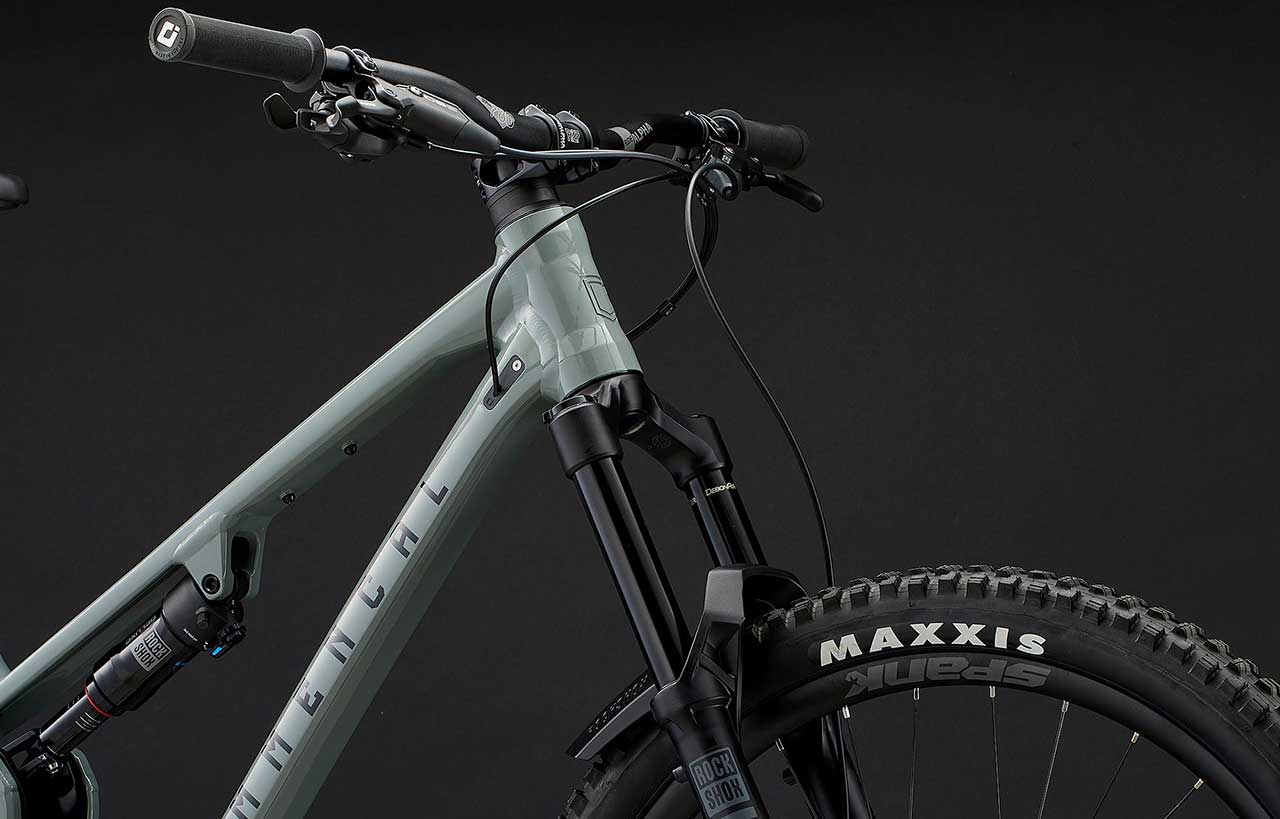

| Fork | ROCKSHOX Lyrik Base, 160 mm travel 29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 Token |
| Headset | ACROS ZS56 / ZS56 Alloy cups, sealed bearings |

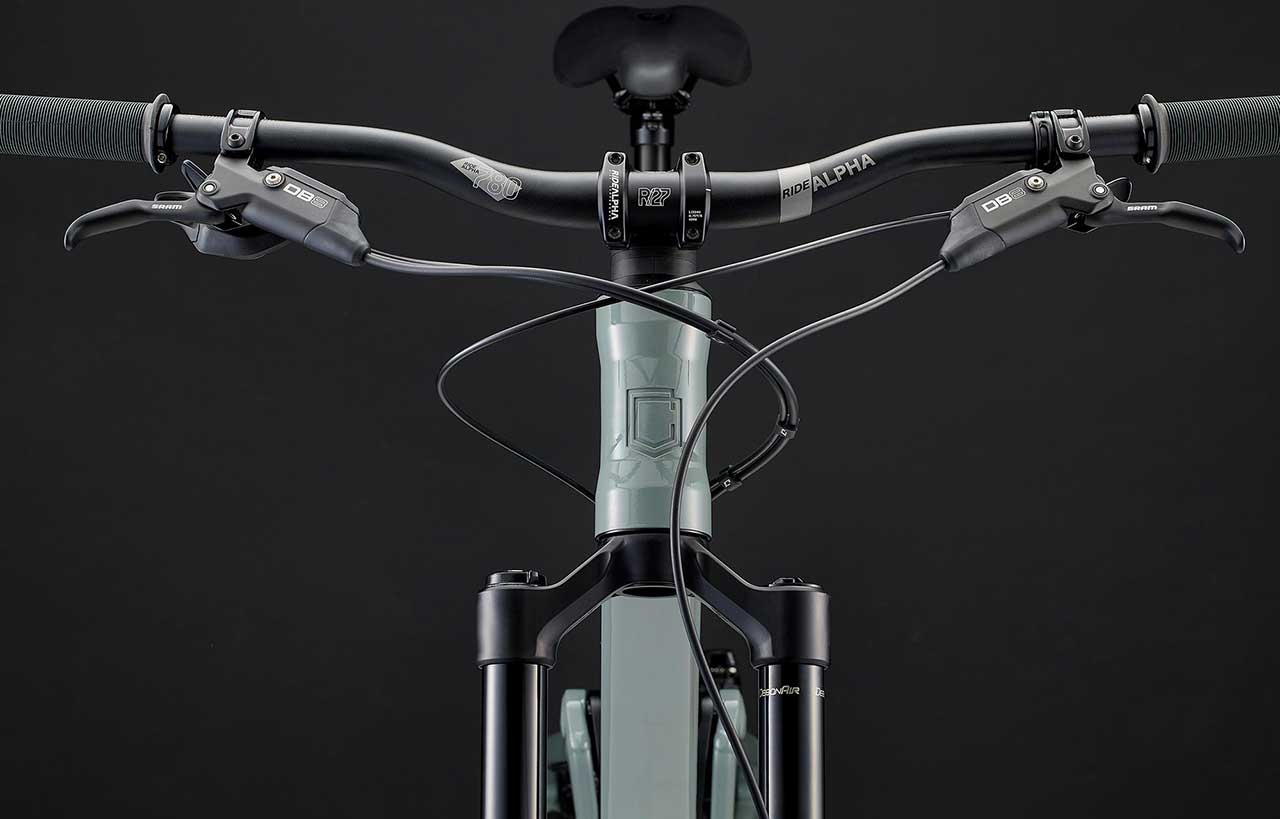

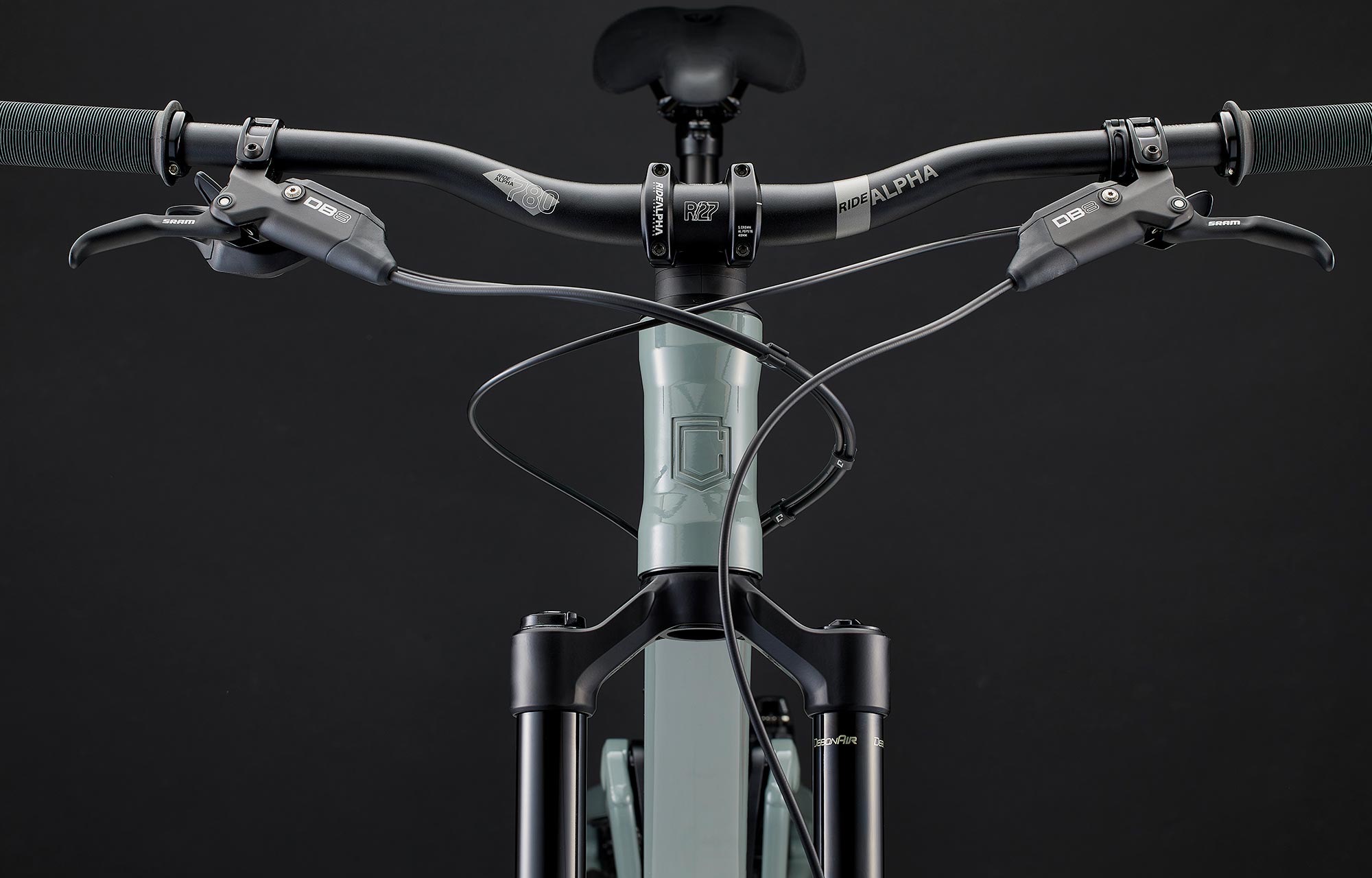

| Stem | RIDE ALPHA 40 40 mm extension, 31,8 mm |
| Bar | RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Grips | ODI Longneck Soft compound, single clamp, black |
| Brakes | SRAM DB8, 4 pistons, MatchMaker compatible Rotor: SRAM G2 CleanSweep 200 mm, 6 holes |
| Shifters | SRAM NX Eagle 12s |
| CHAIN GUIDE | RIDE ALPHA 32t-34t |

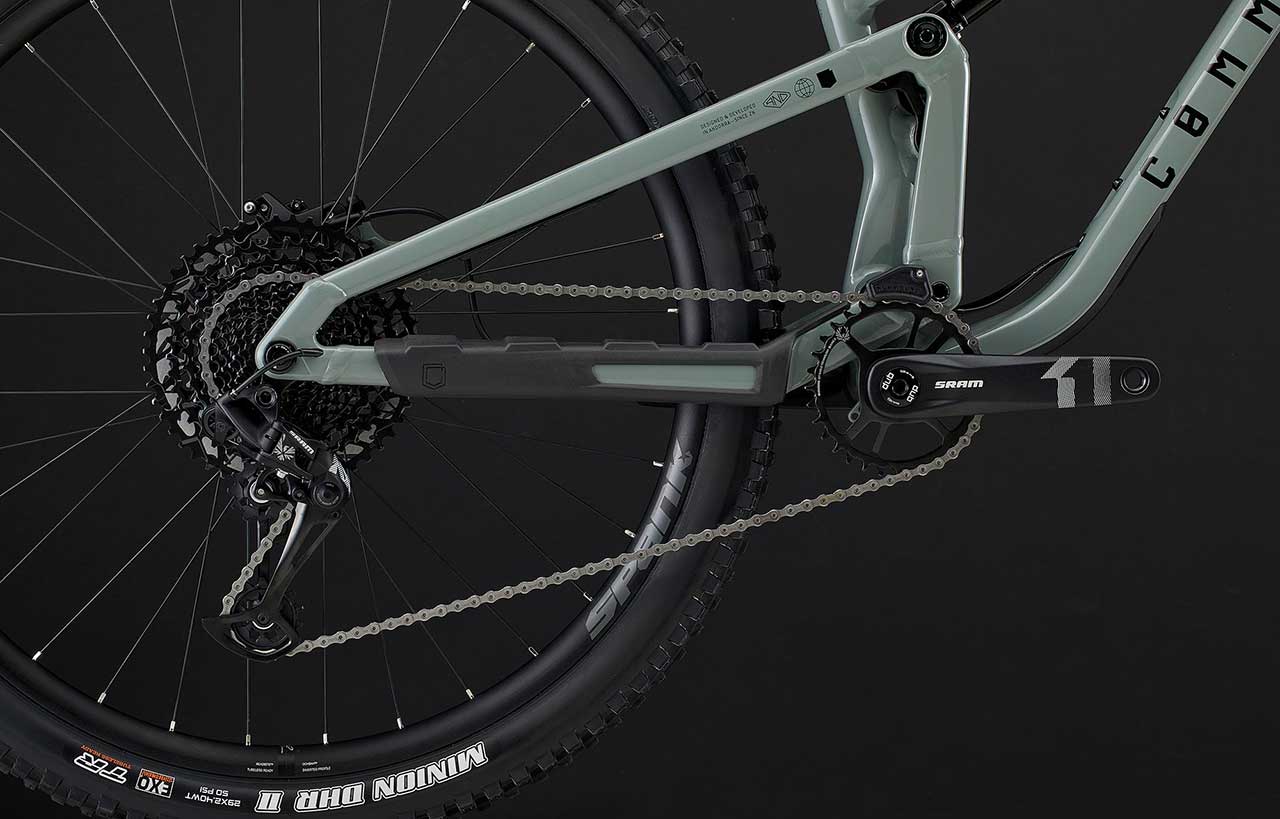

| Rear derailleur | SRAM NX Eagle 12s |
| Bottom Bracket | SRAM DUB WIDE Pressfit |
| Cranks | SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost Chainring: SRAM Eagle, 32t, Narrow-Wide |
| Chain | SRAM NX Eagle 12s |
| Cassette | SRAM PG-1210 12s, 11-50t |
| Rims | SPANK SPIKE RACE 33 29", 32h, 28 mm inner width |
| Hubs | Rear: FORMULA DCL-348A - Front: FORMULA DC-711 Rear: 32h, sealed bearings - Front: 32h, sealed bearings |
| Spokes | SAPIM Race J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black |
| Front Tire | MAXXIS DHR II 29"x2.40" WT, EXO, Dual, Tubeless Ready |
| Rear Tire | MAXXIS DHR II 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless Ready |
| Seatposts | KS Rage-i 34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote |
| Saddle | SDG Bel Air V3 Steel Rails |
| Weight | 15,9 kg / 35.05 lb Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances. |
| Accessories | Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender *Please note that bike specs are subject to change without prior notice. |
| Sizes | S, M, L |
| Colors | SPyrite Grey |
GEOMETORY
| SIZE | ① SEAT TUBE LENGTH | ② SEAT TUBE ANGLE | ③ HEAD TUBE ANGLE | ④ HEAD TUBE LENGTH | ⑤ WHEEL BASE | ⑥ TOP TUBE LENGTH | ⑦ CHAIN STAY LENGTH | ⑧ BOTTOM BRACKET HEIGHT | ⑨ FORK LENGTH | ⑩ STANDOVER HEIGHT | ⑪ REACH | ⑫ STACK | Height adaptation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S Low | 380 | 77.7 | 64.1 | 120 | 1215 | 572.9 | 436.8 | -25.7 | 571 | 435.4 | 626.3 | 158~170cm | |
| S High | 380 | 78.2 | 64.5 | 120 | 1214 | 571.6 | 435 | -20 | 571 | 440 | 628.8 | 158~170cm | |
| M Low | 420 | 77.8 | 64.1 | 125 | 1237 | 593.9 | 436.8 | -25.8 | 571 | 455.4 | 630.8 | 168~180cm | |
| M High | 420 | 78.2 | 64.5 | 125 | 1236 | 592.6 | 435 | -20 | 571 | 460 | 633.3 | 168~180cm | |
| L Low | 440 | 77.8 | 64.1 | 130 | 1271 | 614.8 | 441.8 | -25.8 | 571 | 475.5 | 635.4 | 178~190cm | |
| L High | 440 | 78.2 | 64.5 | 130 | 1270 | 613.5 | 440 | -20 | 571 | 480 | 637.8 | 178~190cm |
- 1SEAT TUBE LENGTH
- 2SEAT TUBE ANGLE
- 3HEAD TUBE ANGLE
- 4HEAD TUBE LENGTH
- 5WHEEL BASE
- 6TOP TUBE LENGTH
- 7CHAIN STAY LENGTH
- 8BOTTOM BRACKET HEIGHT
- 9FORK LENGTH
- 10STAND-OVER HEIGHT
- 11REACH
- 12STACK
