FURIOUS FRAME
税込価格 ¥252,780（税抜価格 ¥229,800）フレーム
サイズ：S, M. L. XL
サイズ：S, M. L. XL

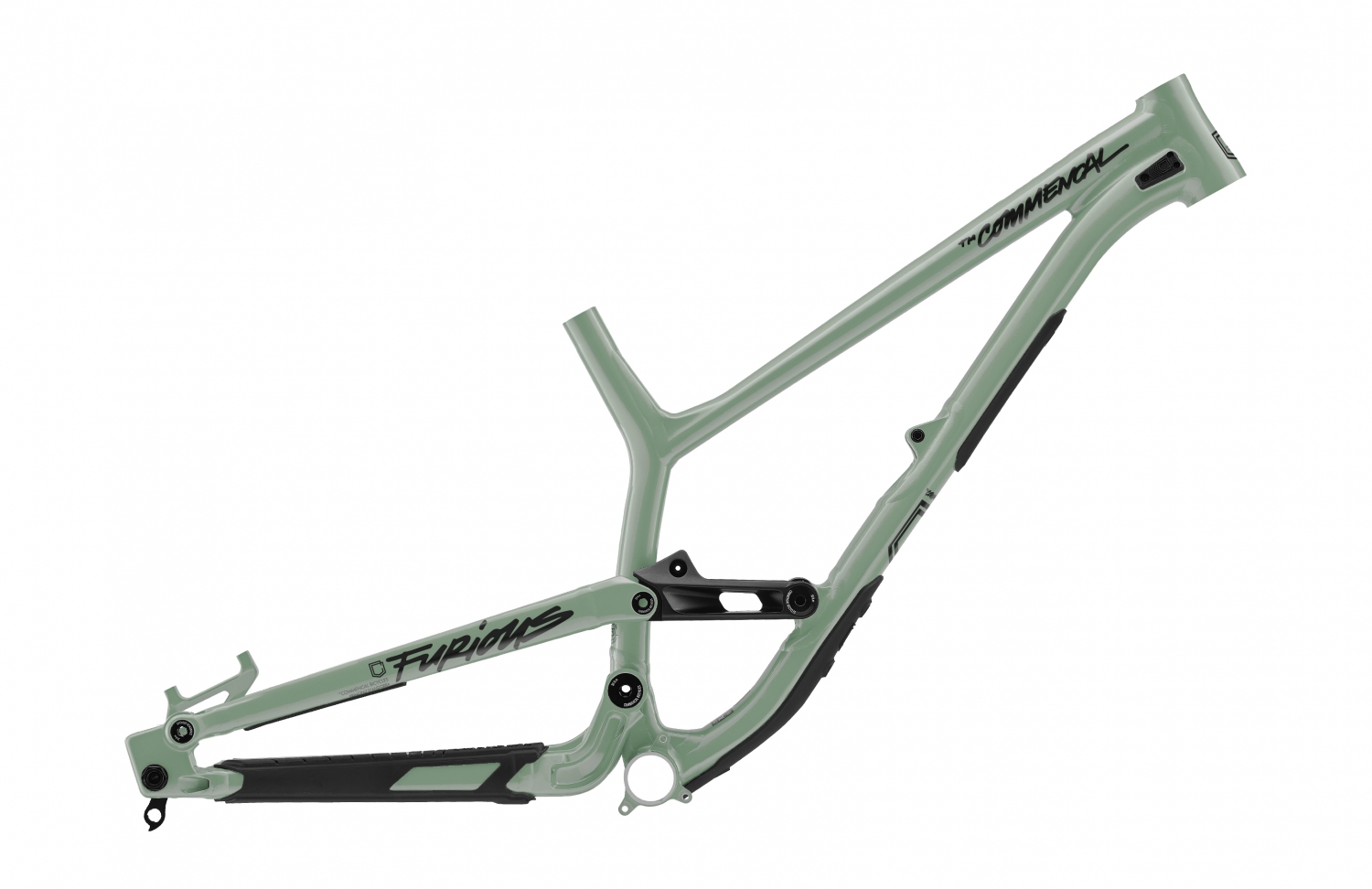

Heritage Green

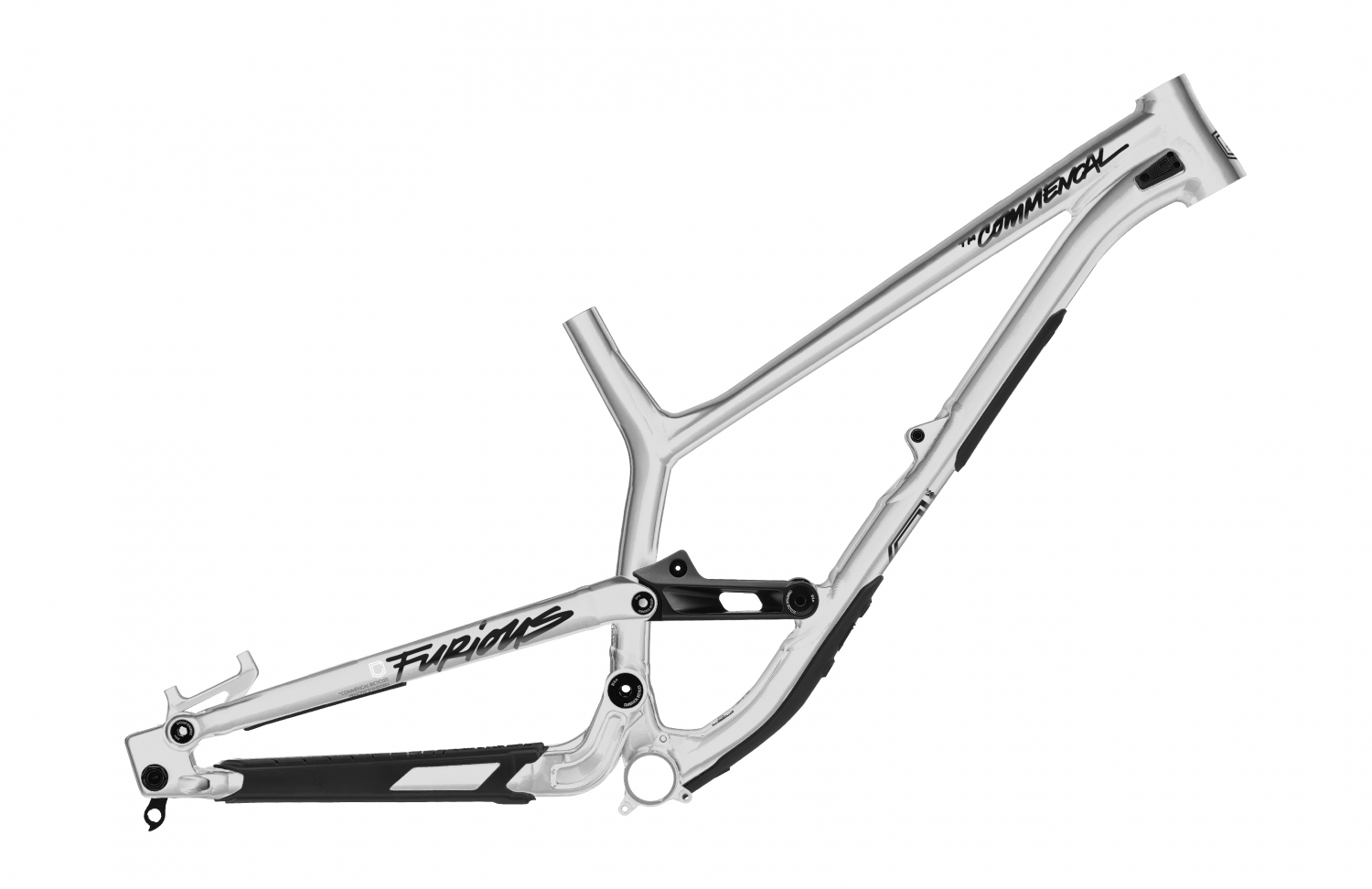

High Polished
Gunmetal
Matte Graphite
GEOMETORY
| SIZE | ① SEAT TUBE LENGTH | ② SEAT TUBE ANGLE | ③ HEAD TUBE ANGLE | ④ HEAD TUBE LENGTH | ⑤ WHEEL BASE | ⑥ TOP TUBE LENGTH | ⑦ CHAIN STAY LENGTH | ⑧ BOTTOM BRACKET HEIGHT | ⑨ FORK LENGTH | ⑩ STANDOVER HEIGHT | ⑪ REACH | ⑫ STACK | Height adaptation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 420 | 63 | 64 | 110 | 1223 | 589 | 435 | -7 | 581 | 732 | 440 | 613 | 151~170 |
| M | 420 | 63 | 64 | 110 | 1248 | 614 | 435 | -7 | 581 | 728 | 465 | 613 | 168~180 |
| S | 420 | 63 | 64 | 110 | 1273 | 638 | 435 | -7 | 581 | 722 | 490 | 613 | 178~190 |
| S | 420 | 63 | 64 | 110 | 1293 | 660 | 435 | -7 | 581 | 718 | 510 | 613 | 188~210 |
- 1SEAT TUBE LENGTH
- 2SEAT TUBE ANGLE
- 3HEAD TUBE ANGLE
- 4HEAD TUBE LENGTH
- 5WHEEL BASE
- 6TOP TUBE LENGTH
- 7CHAIN STAY LENGTH
- 8BOTTOM BRACKET HEIGHT
- 9FORK LENGTH
- 10STAND-OVER HEIGHT
- 11REACH
- 12STACK
