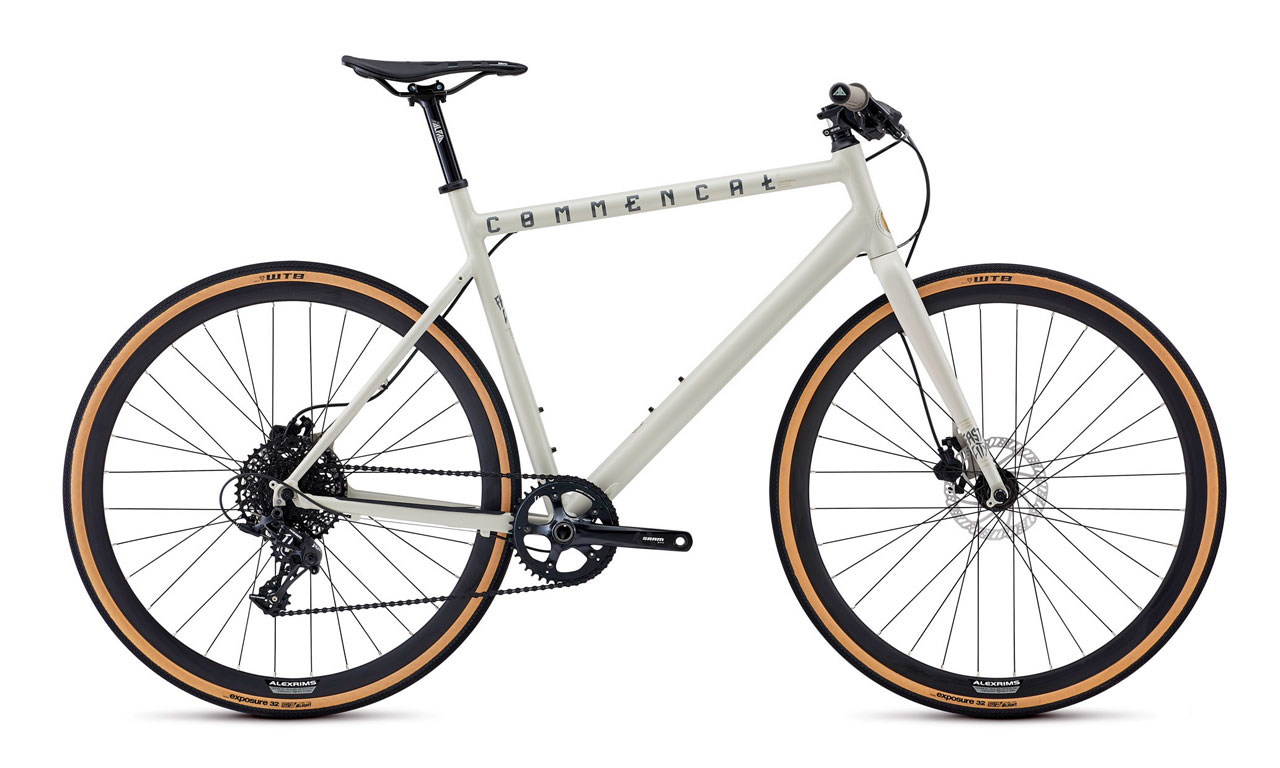

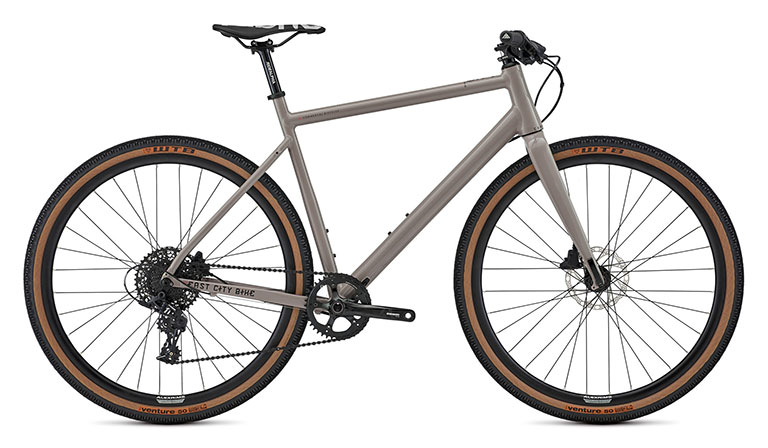

FCB

価格(税別)\169,800完成車


  • サイズ:S/M/L/XL
Frame 2020 FCB 700c Disc, internal cable routing
Fork 2020 FCB 700c, Disc mount
Headset RIDE ALPHA, Campy style
Stem RIDE ALPHA, 50mm, 31,8mm, 0° Angle
Bar RIDE ALPHA, Alloy 6061, double butted, 15mm rise, 760mm, 31,8mm
Grips RIDE ALPHA, DH Grips, ultra soft compound,single clamp
Brake TEKTRO HD-M 285, Hydraulic disc brake 160mm/160mm, with reach adjustment
Shifter SRAM APEX 1 1x11sp
Rear Mech SRAM APEX 1 1x11sp, longue cage
Crank SRAM APEX 1, 40t
Chain KMC X11-EL BPBP, extra light weight, black tech
Cassette SRAM PG 1130, 11-42, 11sp
Rims ALEXRIMS AT560, 32 holes
Hubs FORMULA, 32 holes
Sporks SAPIM RACE spokes, stainless steel, 2.0mm / 1.8mm / 2.0mm
Tires WTB EXPOSURE, 700x32c, skinwall, front & rear
Seatpost RIDE ALPHA, 27,2mm, no offset, 350mm
Saddle FABRIC SCOOP FLAT SPORT V2, 142mm width, Vacuum Technology, steel rails
Accessories S/M/L/XL

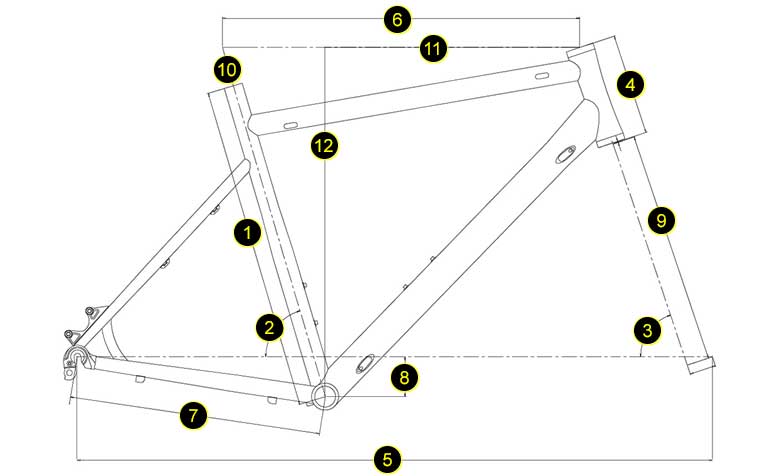

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 510 73.5 71.5 160 1020 565 416 -65 380 840 398 563 150~170
M 530 73.5 71.5 165 1035 585 416 -65 380 860 417 568 168~180
L 550 73.5 71.5 170 1060 605 416 -65 380 880 435 573 178~190
XL 570 73.5 71.5 175 1100 640 416 -65 380 900 469 577.5 188~210
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
