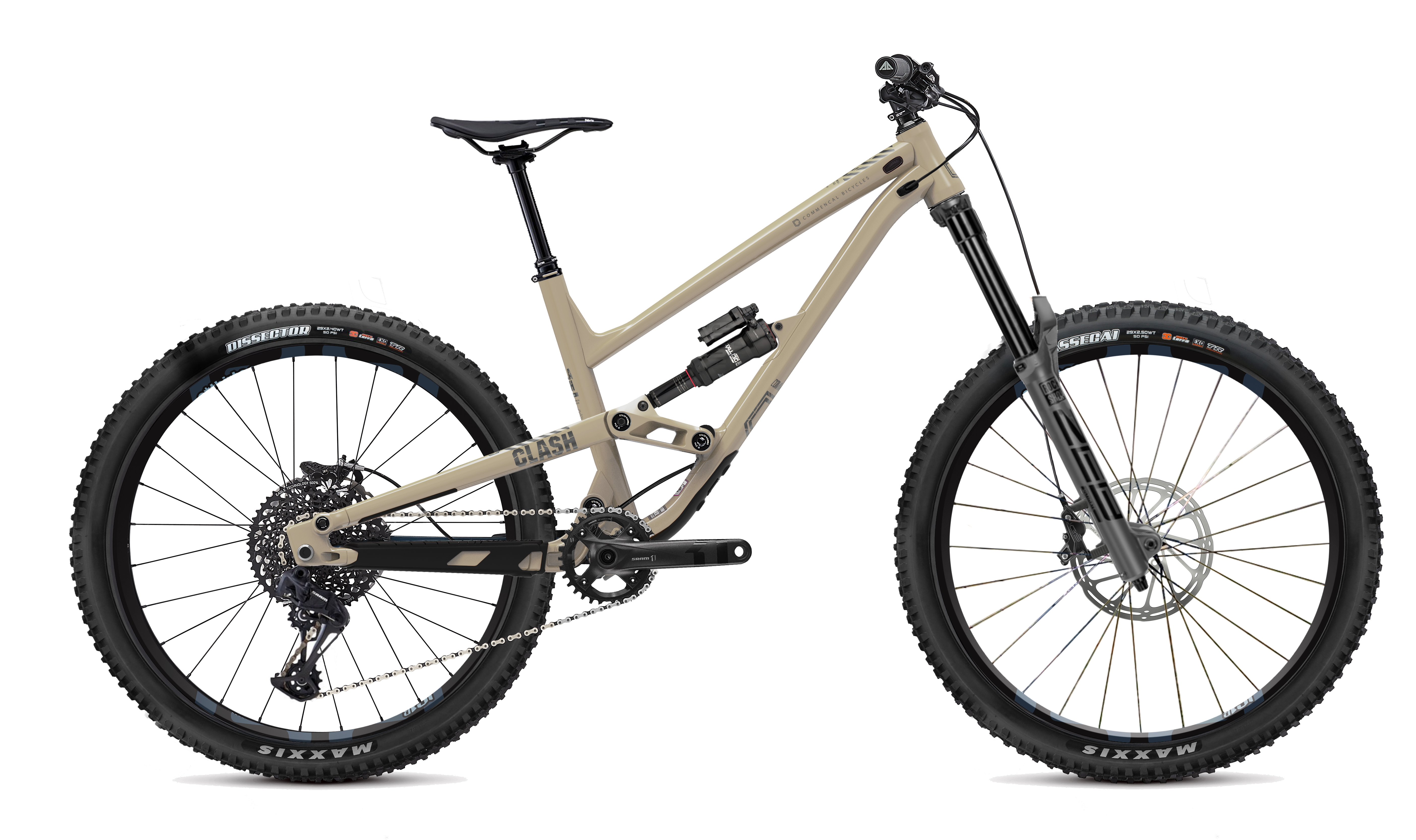

CLASH RIDE

価格(税別)\499,800完成車


  • サイズ:S, M. L. XL
Frame 2020 CLASH, 650b, 170mm travel
Shock ROCKSHOX SUPER DELUXE SELECT, 230 x 65 mm, rebound
Fork ROCKSHOX LYRIK SELECT, 180 mm, 15 mm axle, compression, rebound, boost. Bottomless Token: 0
Headset ACROS Alloy ZS44/ZS56, sealed bearings
Stem RIDE ALPHA FREERIDE, 40mm, 31,8mm, 0°angle
Bar RIDE ALPHA, Alloy 7050, double butted, 27mm rise, 780mm, 31,8mm
Grips RIDE ALPHA, DH Grips, ultra soft compound,single clamp
Brakes SRAM GUIDE T, 200 mm / 200 mm
Shifters SRAM SX EAGLE, 1x12sp
Rear Mech SRAM NX EAGLE, 1x12sp
Cranks SRAM DESCENDANT 6K EAGLE 6K, 34t,170mm
Chain SRAM SX EAGLE, 1x12sp
Cassette SRAM NX EAGLE, 10-50, 12sp
Rims E13 LG1 DH, 32 holes, tubeless ready, 30mm inner width
Hubs FORMULA, 32 holes, Sealed bearings
Spokes SAPIM RACE spokes, stainless steel, 2.0mm / 1.8mm / 2.0mm
Tires SCHWALBE MAGIC MARY, 29x2.35, TLE,Addix compound, front
SCHWALBE NEW HANS DAMPF 29x2.35,TLE, Addix compound, rear
Seatpost KINDSHOCK Ragei, 31.6mm, Southpaw alloy lever
Saddle FIZIK TAIGA, CrMo rails,black
Accessories Down tube protector,chainstay protector,seatstay protector
Sizes S/M/L/XL

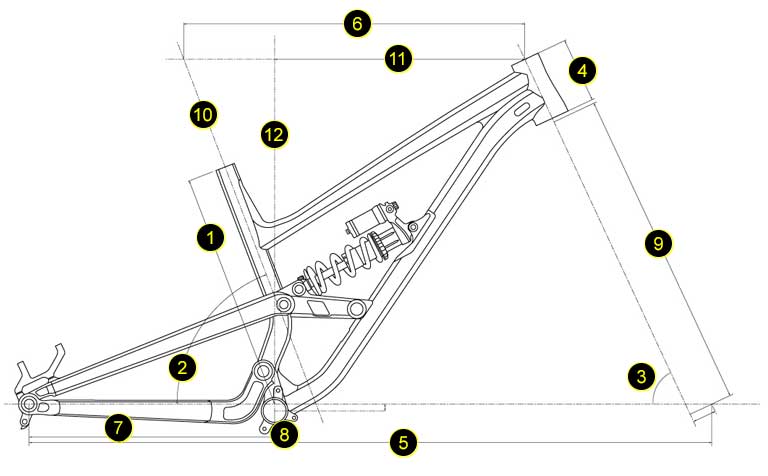

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 395 75.5 65.0 110 1184 581 434 -12 571   422 602 151~170
M 440 75.5 65.0 115 1206 603 434 -12 571   442 608 168~180
L 455 75.5 65.0 125 1235 631 434 -12 571   467 612 178~190
XL 485 75.5 65 125 1267 663 434 -12 571   497 616 188~210
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
