SUPREME DH V5.2 ROCKSHOX

価格 OPEN完成車
サイズ：S, M, L

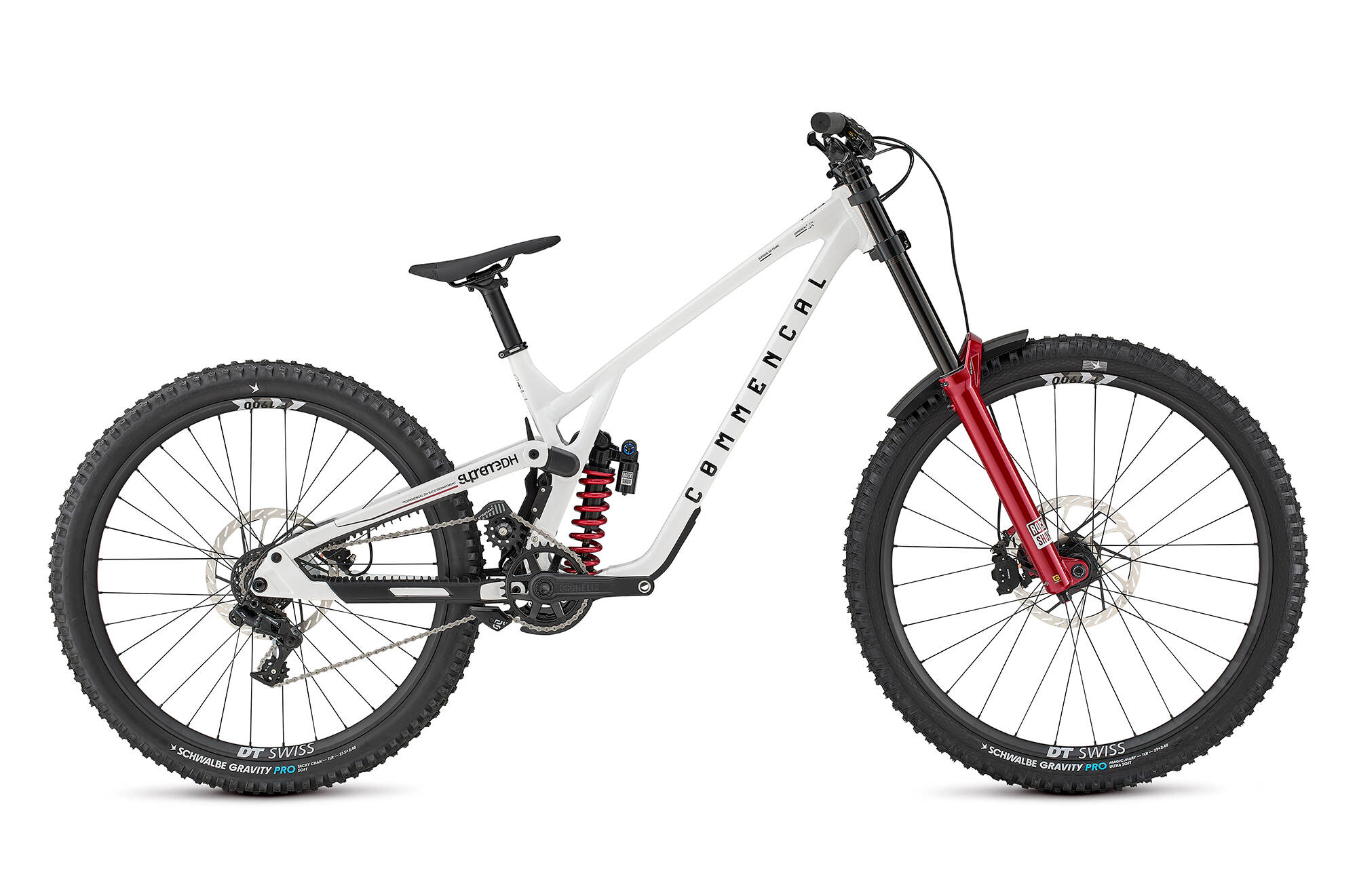

PURE WHITE

ROCKSHOX Ultimateが引き出す、攻めるためのDHパフォーマンス。

ROCKSHOX Ultimateをフル装備し、フレーム性能を最大限に引き出したハイパフォーマンスDHマシン。
Boxxer Ultimate＋Linear XLエアスプリングは、高いサポート性とグリップ力、優れた路面追従性を発揮。リアのVivid Coil Ultimate DHと組み合わせ、荒れたセクションや激しいコンプレッションでも安定したコントロールを実現します。
SRAM Maven Bronze 4ピストン＋220 mmローターによる強力かつ繊細な制動力、DT SWISS F1900 Classicホイール＋370 Classic LNハブの高い耐久性、SRAM GX DH 7速＋E13の堅牢な駆動系を採用。
路面を読み、バイクを操り、限界まで攻め切る。
レースで勝ちたい、自己ベストを更新したい。そんなライダーのために、速さとコントロールを凝縮した一台です。

SPECIFICATIONS

FRAME	SUPREME DH V5.2, 29/27, 220 mm travel 29/27″, Alloy 6066, triple butted tubes, T4, T6.
SHOCK	ROCKSHOX VIVID Ultimate DH 250 x 75 mm, RCT2 damper, HSC, LSC, rebound, Adjustable Bottom Out. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 550 lbs on XL
FORK	ROCKSHOX BOXXER Ultimate 29″, Charger 3.2 RC damper, Linear XL air spring, HSC, LSC, rebound, 48 mm offset, 0 Token
HEADSET	ACROS ZS56/ZS56 Alloy cups, sealed bearings
STEM	RIDE ALPHA DH 40 Adjustbale 40 our 45 mm extension, direct mount, 31.8 mm
BAR	RIDE ALPHA R27 on S - RIDE ALPHA R35 on M / L / XL 31.8 mm, 760 mm width, 27 mm rise, Alloy 7050 on S - 31.8 mm, 780 mm width, 35 mm rise, Alloy 7050 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 7050 on XL
GRIPS	RIDE ALPHA MUSHROOM Black clamps
BRAKES	SRAM Maven Bronze, 4 pistons, sintered pads Rotors: SRAM HS2 220 mm, 6-bolts
SHIFTERS	SRAM GX DH 7s
CHAIN GUIDE	E13 LG1+ 32-34t
REAR MECH	SRAM GX DH 7s
BOTTOM BRACKET	SHIMANO MT800P BB107, pressfit
CRANKSET	E13 Helix core GR, 160 mm crank arms, DUB Chainring: E13 Helix core GR, 34t
CHAIN	SRAM PC1110 11s, black
CASSETTE	SRAM PG-720 DH 7s, 11-25t
RIMS	DT SWISS F1900 Classic Rear: 27.5″, 32h, 30 mm inner width - Front: 29″, 32h, 30 mm inner width
HUBS	DT SWISS 370 Classic LN Rear: 32h, sealed bearings, 12 x 157 mm, Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm
SPOKES / NIPPLES	DT SWISS Competition J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black
TYRES	Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary Rear: 27.5″x2.5″, Gravity Pro, Soft, Tubeless Ready - Front: 29″x2.5″, Gravity Pro, Ultra Soft, Tubeless Ready
SEATPOST	RIDE ALPHA 31.6 mm, 250 mm length
SADDLE	FIZIK Gravita Alpaca X5 130 mm width, S-Alloy rails, Team edition
WEIGHT	19,4 kg / 42.76 lb Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PEDALS INCLUDED	No
COLOUR	Pure White Shiny Finish
ACCESSORIES	RideWrap Lotus Pro™ protection film applied, chainstay protector, seatstay protector, downtube protector, fork fender

GEOMETORY

SIZE	① SEAT TUBE LENGTH	② SEAT TUBE ANGLE	③ HEAD TUBE ANGLE	④ HEAD TUBE LENGTH	⑤ WHEEL BASE	⑥ TOP TUBE LENGTH	⑦ CHAIN STAY LENGTH	⑧ BOTTOM BRACKET HEIGHT	⑨ FORK LENGTH	⑩ FORK OFFSET	⑪ REACH	⑫ STACK
XS Low	370	76,4	63,9	112	1196	548	442	1,5	581	52	401	605
XS High	370	76,8	64,3	112	1194	546	440	-3,5	581	52	405	602,5
S Low	370	75,7	63,3	112	1246	596	442	2,5	612	52	431	649
S High	370	76,1	63,7	112	1244	594	440	-3	612	52	435	646
M Low	370	75,7	63,3	112	1283	621	454	2,5	612	52	456	649
M High	370	76,1	63,7	112	1281	619	452	-3	612	52	460	646
L Low	370	75,7	63,3	112	1311	649	454	2,5	612	52	484	649
L High	370	76,1	63,7	112	1309	647	452	-3	612	52	488	646
XL Low	370	75,7	63,3	112	1331	669	454	2,5	612	52	504	649
XL High	370	76,1	63,7	112	1329	667	452	-3	612	52	508	646

1SEAT TUBE LENGTH
2SEAT TUBE ANGLE
3HEAD TUBE ANGLE
4HEAD TUBE LENGTH
5WHEEL BASE
6TOP TUBE LENGTH
7CHAIN STAY LENGTH
8BOTTOM BRACKET HEIGHT
9FORK LENGTH
10STAND-OVER HEIGHT
11REACH
12STACK
