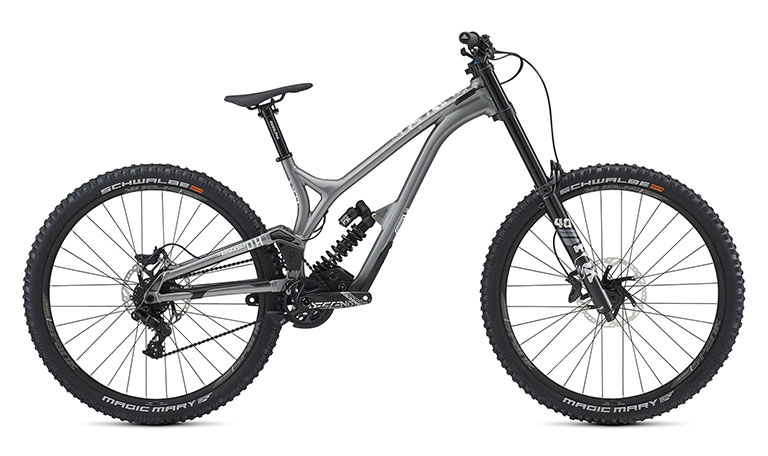

SUPREME DH 29 RACE

税込価格 ¥824,780（税抜価格 ¥749,800）完成車
サイズ：M, L

Matte Graphite

Frame	2021 SUPREME DH 29, 200mm travel
Shock	FOX DHX2 Performance Elite
Fork	FOX 40 Performance, 203mm Travel
Headset	ACROS ZS56/ZS56
Stem	RIDE ALPHA DH 40mm, 31,8mm
Bar	RIDE ALPHA 27mm rise, 780mm, 31,8mm
Grips	RIDE ALPHA, DH Grips, black
Brakes	SHIMANO Deore 4 pistons, 203mm
Shifters	SRAM GX DH, 7sp
Chainguide	E13 LG1
Rear derailleur	SRAM GX DH, 7sp
Bottom Bracket	SRAM DUB Pressfit
Cranks	TRUVATIV Descendant DH, 165mm, 34t
Chain	KMC X11, 11sp
Cassette	SRAM GX DH, 7sp
Rims	SPANK 359
Hubs	FORMULA, sealed bearings
Spokes	DT SWISS COMPTITION 2.0 / 1.8 / 2.0mm
Front Tire	SCHWALBE Magic Mary DH, 29 x 2.40
Rear Tire	SCHWALBE Magic Mary DH, 29 x 2.40
Seatposts	RIDE ALPHA Super Light, 31.6mm
Saddle	FIZIK Alpaca Gravita X5
Accessories	Down tube protector, chainstay protector, seatstay protector
Sizes	M/L
Colors	Matte Graphite

SIZE	① SEAT TUBE LENGTH	② SEAT TUBE ANGLE	③ HEAD TUBE ANGLE	④ HEAD TUBE LENGTH	⑤ WHEEL BASE	⑥ TOP TUBE LENGTH	⑦ CHAIN STAY LENGTH	⑧ BOTTOM BRACKET HEIGHT	⑨ FORK LENGTH	⑩ STANDOVER HEIGHT	⑪ REACH	⑫ STACK	Height adaptation
M	400	67	63	112	1290	612	456	-4	607	-	455	620	168~180
L	400	67	62.5	112	1320	638	456	-4	607	-	480	620	178~190
