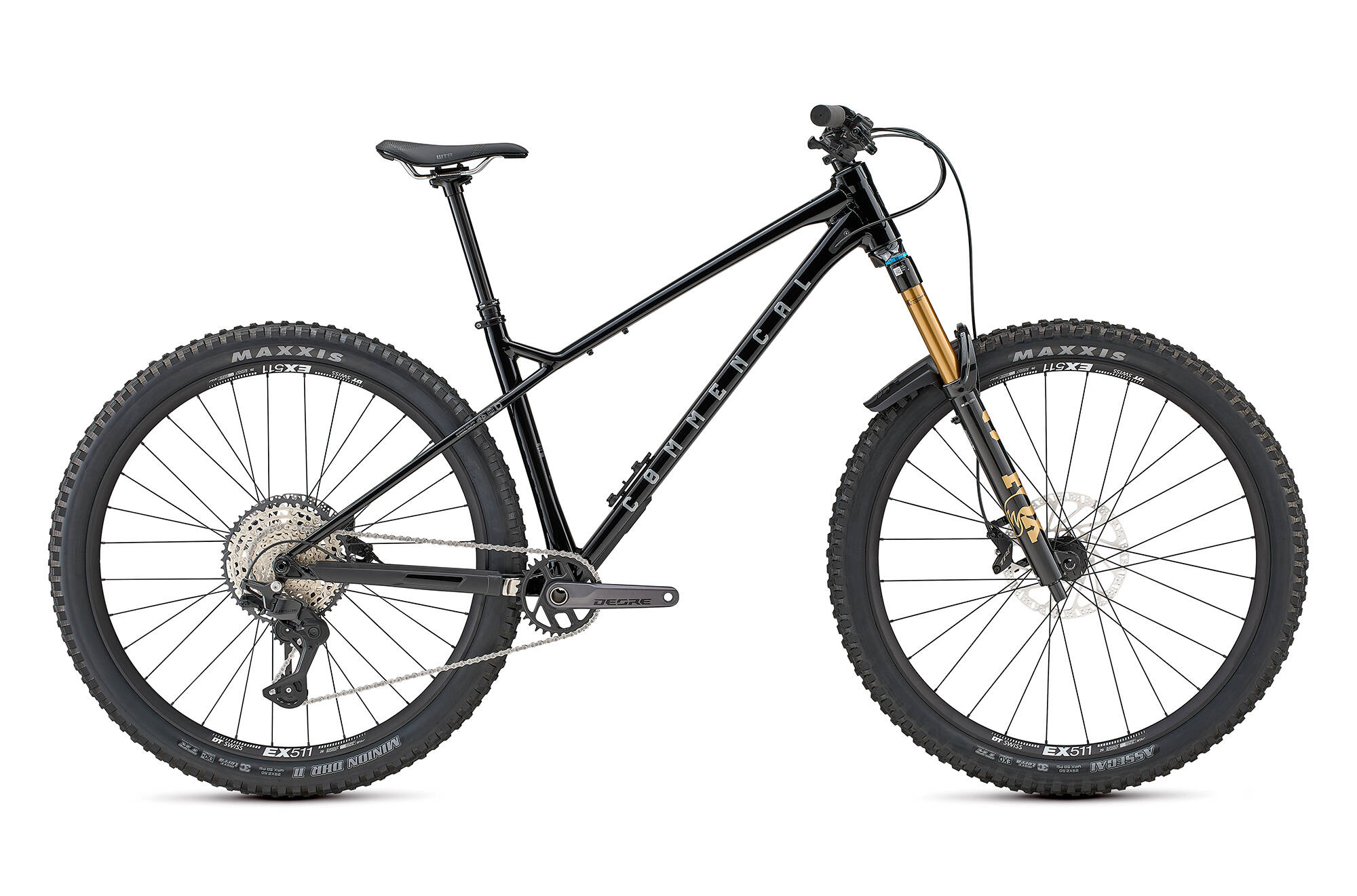

META HT V3 SIGNATURE

税込価格 ¥979,000（税抜価格 ¥890,000）完成車
サイズ：S, M, L, XL

PURE BLACK

ハードテイルの楽しさを、最高峰のスペックで。

ハードテイルならではのダイレクトな操作感と軽快さを、ハイエンドパーツで極限まで引き上げた一台。
FOX 36 Factory 150 mm＋Grip X2、DT SWISS EX511ホイール、TRP DHR EVO Expert＋203 mmローターを搭載し、荒れたトレイルでも高い接地感、安定感、制動力を発揮。
SHIMANO Deoreドライブトレインによる確実な変速で、登りから下りまで軽快に楽しめます。
シンプルだからこそ、走りの違いがわかる。
META HT V3 SIGNATURE。
本気でトレイルを攻めたいライダーのための、究極のハードテイル。

SPECIFICATIONS

FRAME	META HT V3: 29″/27″ on S & 29″/29″ on M / L / XL Alloy 6061, triple butted tubes, T4, T6.
FORK	FOX 36 Factory, 150 mm travel 29″, Grip X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 tokens
HEADSET	ACROS ZS56/ZS56 Alloy cups, sealed bearings
STEM	RIDE ALPHA 40 mm 40 mm extension, 31.8 mm
BAR	RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R35 800 on XL 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XL
GRIPS	RIDE ALPHA Mushroom 132 mm, black clamp
BRAKES	TRP DHR EVO EXPERT, 4 pistons Rotors: TRP RS06E 203 mm, 6-bolts
SHIFTERS	SHIMANO Deore M6200 12s
REAR MECH	SHIMANO Deore M7200 12s
BOTTOM BRACKET	SHIMANO MT801 BSA 68
CRANKSET	SHIMANO Deore M6200, 170 mm crank arms Chainring: SHIMANO Deore M6200, 32t
CHAIN	SHIMANO Deore M6100 12s
CASSETTE	SHIMANO Deore M7200 12s, 10-51t
RIMS	DT SWISS EX511 Rear: 27.5″, 32h, 30 mm inner width rear on S - 29″, 32h, 30 mm inner width front on M / L / XL - Front: 29″, 28h, 30 mm inner width rear on S / M / L / XL
HUBS	DT SWISS 370 Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 28h, sealed bearings, 15 x 110 mm
SPOKES / NIPPLES	DT SWISS Competition J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
TYRES	Rear: MAXXIS DHRII - Front: MAXXIS Assegai Rear: S: 27.5x2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ - M / L / XL: 29x2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ - Front: 29x2.50WT 3C MaxxTerra, Exo, TR
SEATPOST	KS Rage-I 31.6 mm, travel: 150 mm on S, 170 mm on M, 190 mm on L/XL
SADDLE	WTB Solano Medium 142 x 240 mm, Cromo rails
WEIGHT	14 kg / 30.86 lbs Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PEDALS INCLUDED	No
COLOUR	Pure Black Shiny Finish
ACCESSORIES	Chainstay protector, seatstay protector, fork mud guard, FIDLOCK base

GEOMETORY

SIZE	① SEAT TUBE LENGTH	② SEAT TUBE ANGLE	③ HEAD TUBE ANGLE	④ HEAD TUBE LENGTH	⑤ WHEEL BASE	⑥ TOP TUBE LENGTH	⑦ CHAIN STAY LENGTH	⑧ BOTTOM BRACKET HEIGHT	⑨ FORK LENGTH	⑩ REACH	⑪ STACK
S	380	76,8	65,8	115	1150	558	425	-54,4	561	410	638
M	420	75,5	64,5	120	1196	603	430	-50	561	435	649
L	440	75,5	64,5	125	1218	624	430	-50	561	455	653
XL	460	75,5	64,5	130	1246	650	430	-50	561	480	658

1SEAT TUBE LENGTH
2SEAT TUBE ANGLE
3HEAD TUBE ANGLE
4HEAD TUBE LENGTH
5WHEEL BASE
6TOP TUBE LENGTH
7CHAIN STAY LENGTH
8BOTTOM BRACKET HEIGHT
9FORK LENGTH
10STAND-OVER HEIGHT
11REACH
12STACK
