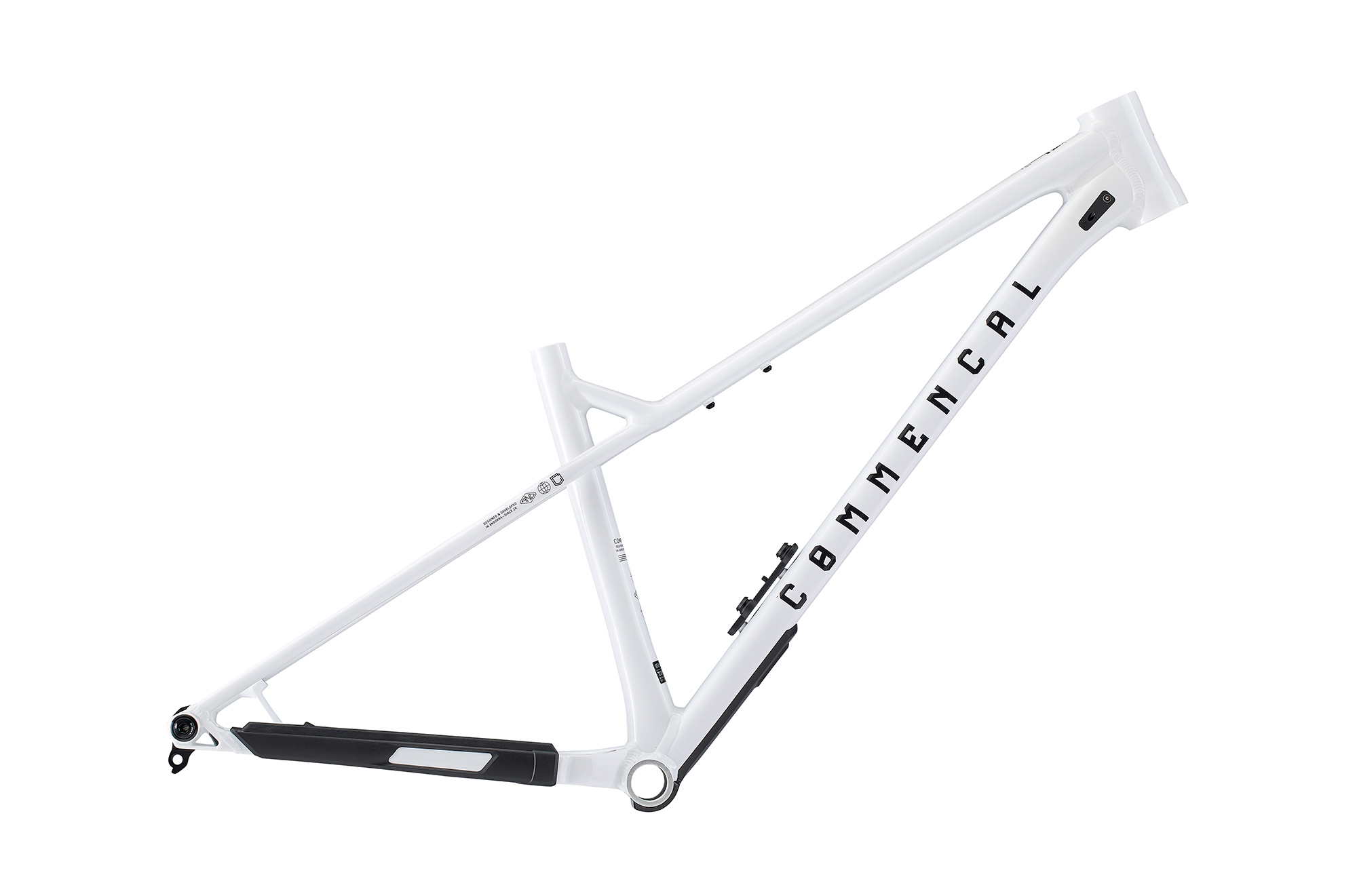

META HT V3 FRAME
税込価格 ¥297,000（税抜価格 ¥270,000）完成車
サイズ：S, M, L, XL
サイズ：S, M, L, XL
PURE WHITE
SPECIFICATIONS
| BICYCLE TYPE | All Mountain |
|---|---|
| FRAME MATERIAL | AL 6061 T4, T6 |
| FRAME WEIGHT | 2,32 kg / 5,11 lb |
| RECOMMENDED/MAX. FORK HEIGHT | 561mm / 571mm |
| HEADSET TYPE | ZS56 / ZS56 |
| ICR COMPATIBLE | Yes |
| WHEELS SIZE | 29″ - 29″ (M-L-XL) 29″ - 27.5″ (S) |
| MAX. REAR TYRE DIMENSION - ETRTO | 64mm - Ø622mm (M-L-XL) 64mm - Ø584mm (S) |
| REAR BRAKE MOUNTING TYPE | Postmount 200mm |
| REAR BRAKE ROTOR MAX. SIZE | 200mm |
| SEATPOST/SEAT CLAMP DIAMETER | 31,6mm / 34,9mm |
| SEATPOST INSERTION MAX. | S : 300mm / M : 300mm / L : 320mm / XL : 340mm |
| BOTTOM BRACKET TYPE | BSA 68mm |
| CHAIN GUIDE | No |
| RECOMMENDED/MAX. CHAINRING TEETH | 32T / 34T |
| CHAIN LINE | 53 |
| REAR HUB DIMENSION | 148x12mm |
| REAR AXLE DIMENSION | UDH standard, 180mm, M12, P1.0mm |
| UDH HANGER | Yes |
GEOMETORY
| SIZE | ① SEAT TUBE LENGTH | ② SEAT TUBE ANGLE | ③ HEAD TUBE ANGLE | ④ HEAD TUBE LENGTH | ⑤ WHEEL BASE | ⑥ TOP TUBE LENGTH | ⑦ CHAIN STAY LENGTH | ⑧ BOTTOM BRACKET HEIGHT | ⑨ FORK LENGTH | ⑩ REACH | ⑪ STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 380 | 76,8 | 65,8 | 115 | 1150 | 558 | 425 | -54,4 | 561 | 410 | 638 |
| M | 420 | 75,5 | 64,5 | 120 | 1196 | 603 | 430 | -50 | 561 | 435 | 649 |
| L | 440 | 75,5 | 64,5 | 125 | 1218 | 624 | 430 | -50 | 561 | 455 | 653 |
| XL | 460 | 75,5 | 64,5 | 130 | 1246 | 650 | 430 | -50 | 561 | 480 | 658 |
- 1SEAT TUBE LENGTH
- 2SEAT TUBE ANGLE
- 3HEAD TUBE ANGLE
- 4HEAD TUBE LENGTH
- 5WHEEL BASE
- 6TOP TUBE LENGTH
- 7CHAIN STAY LENGTH
- 8BOTTOM BRACKET HEIGHT
- 9FORK LENGTH
- 10STAND-OVER HEIGHT
- 11REACH
- 12STACK
