SUPREME

SUPREME DH 29 FRAME

High Polished / ¥384,780（本体価格¥349,800）フレーム
Pearl white/Electroplate Lagoon, Pearl white/Chrome, Dirt / ¥373,780（本体価格¥339,800）フレーム
サイズ：M, L, XL
Heritage Green / Dark Green

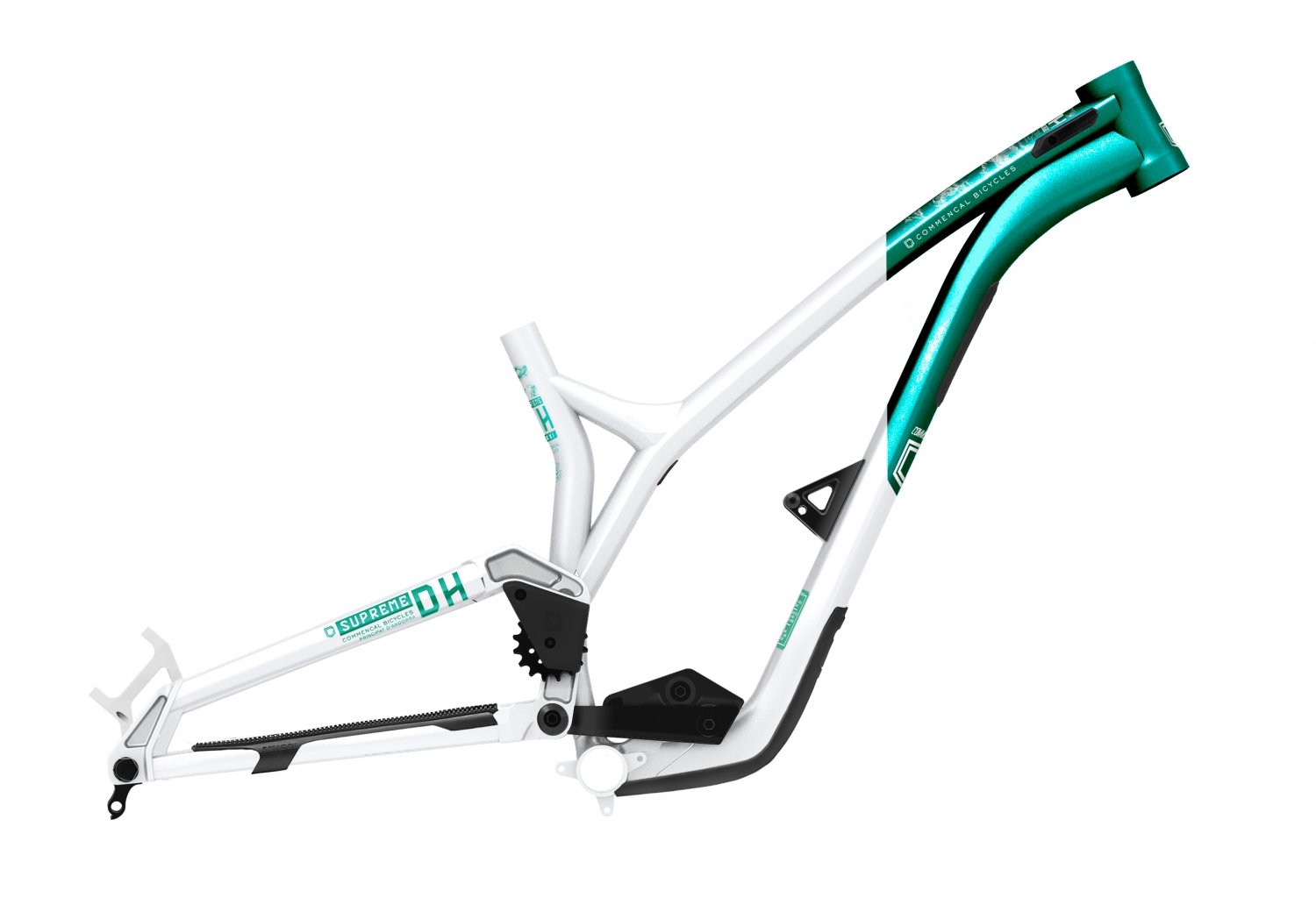

Pearl white / Electroplate Lagoon

High Polished

High Polished

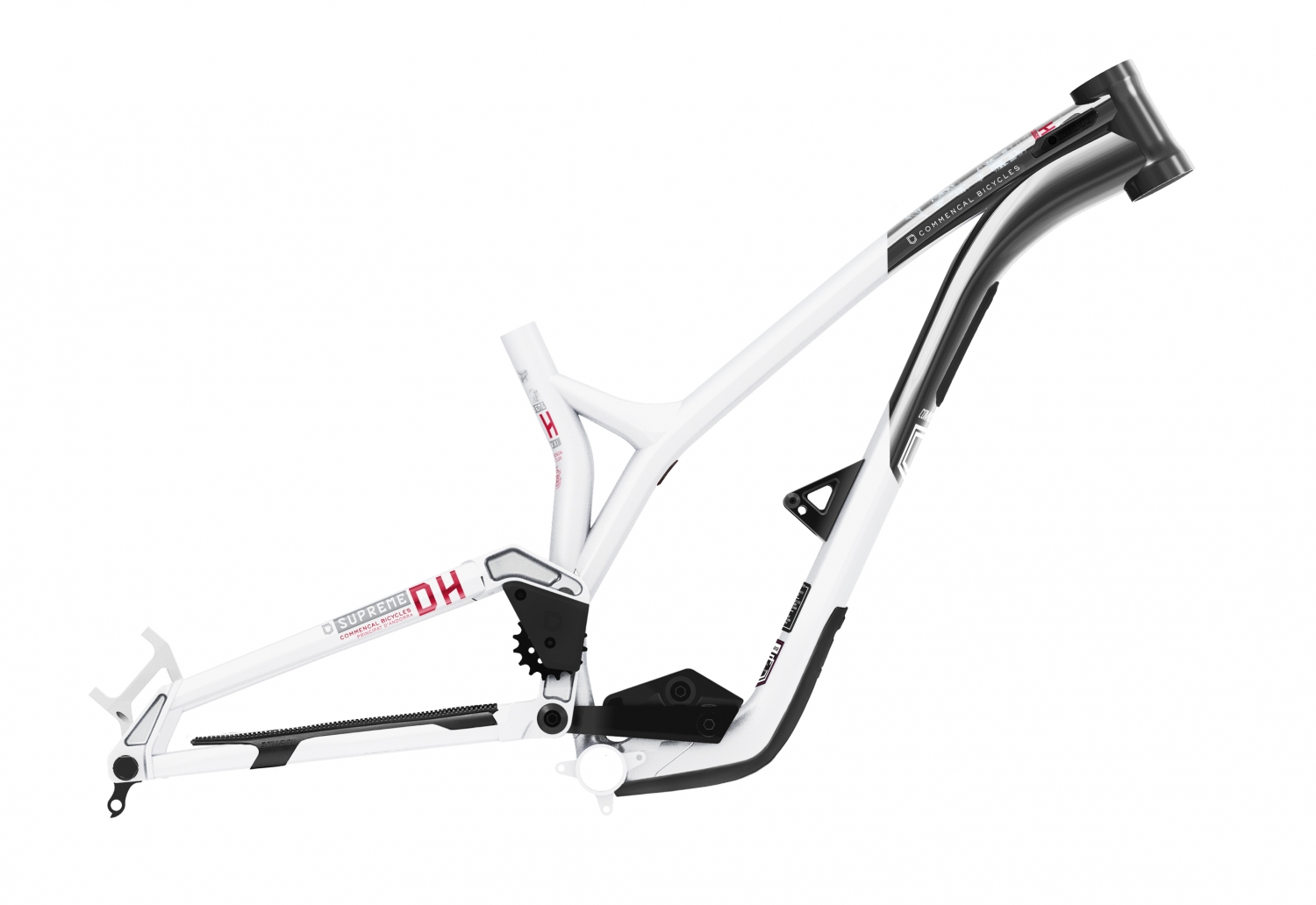

Pearl white / Chrome

Pearl white / Chrome

Matte Graphite

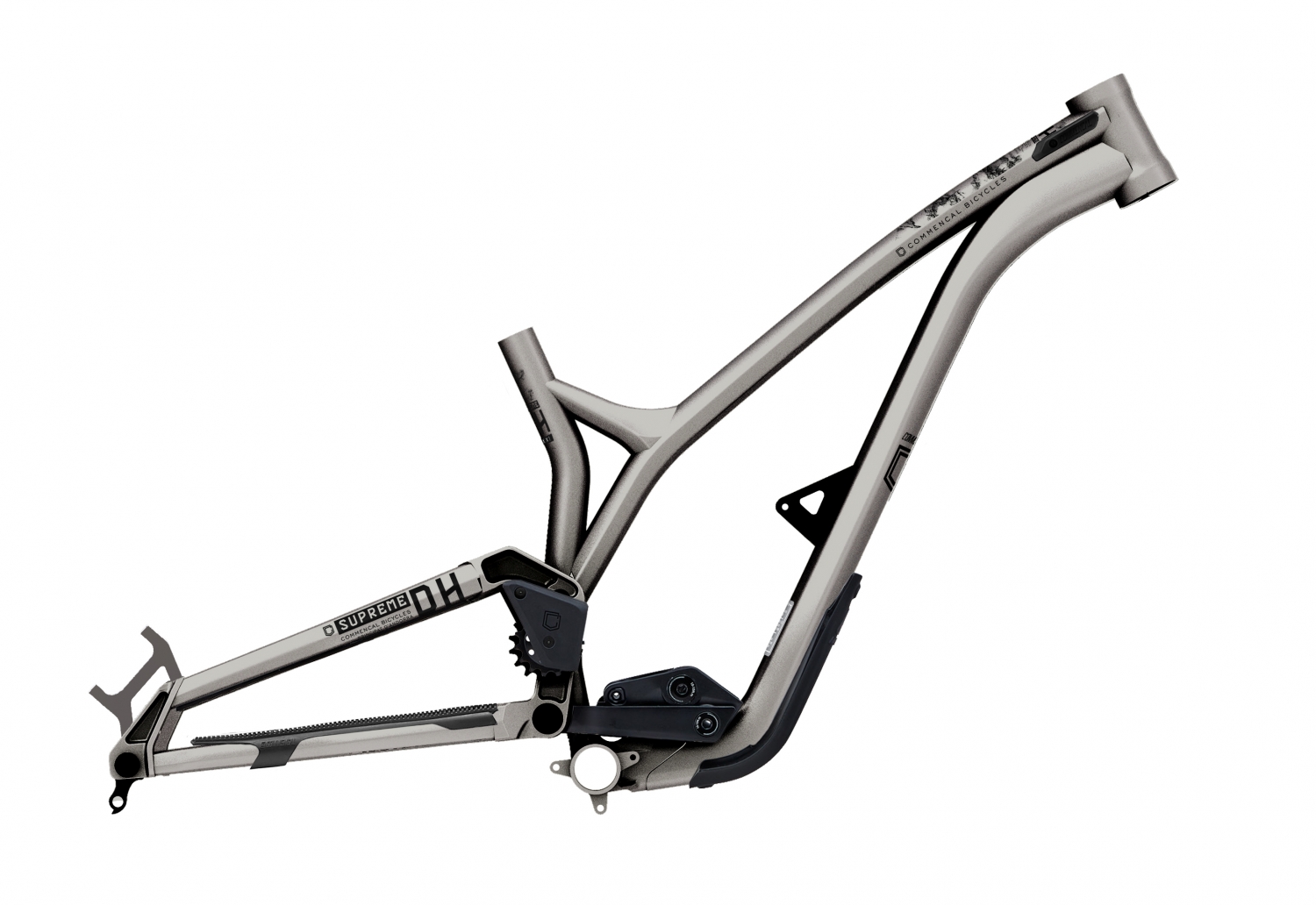

Dirt

Heritage Green サムネイル
High Polished サムネイル
Pearl white / Chrome サムネイル
Dirt サムネイル

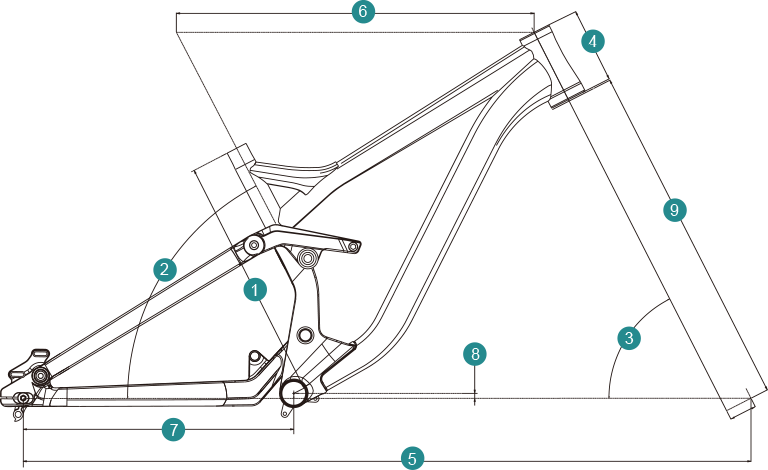

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
M 400 665 63.8 112 1252 618 430 -11.5 601 - 455 614 168~180
L 400 665 63.5 112 1277 643 430 -11.5 601 - 480 614 178~190
XL 400 665 63.8 112 1297 663 430 -11.5 601 - 500 614 188~210
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
