  4. SUPREME DH 27 FRAME
SUPREME

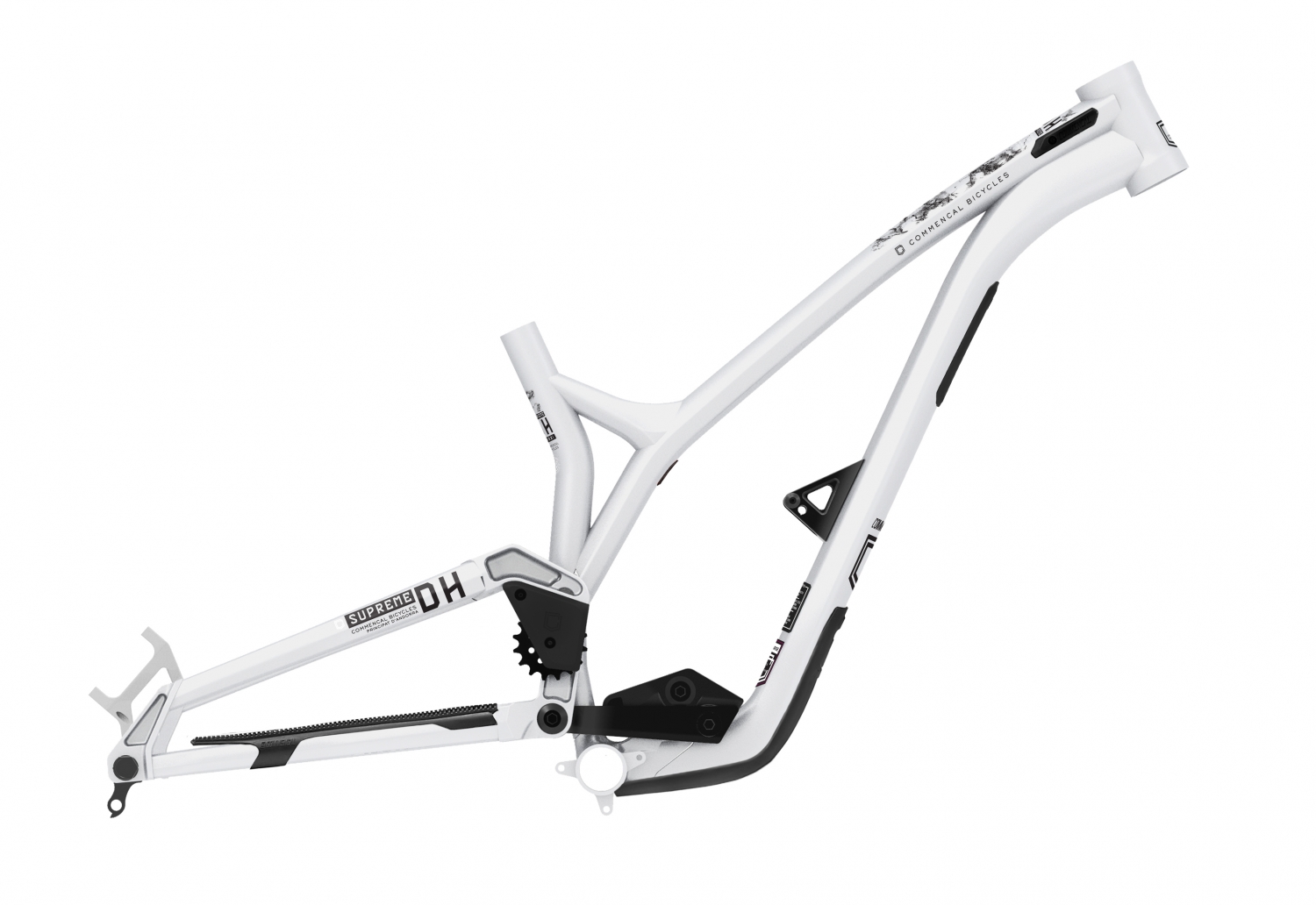

SUPREME DH 27 FRAME

¥373,780（本体価格¥339,800）フレーム
サイズ：S, M, L
Matte Graphite

Matte Graphite

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 400 66.5 63.5 112 1225 594 430 -5 590 - 435 617.2 151~170
M 400 66.5 63.5 112 1245 614 430 -5 590 - 455 617.2 168~180
L 400 66.5 63.5 112 1270 629 430 -5 590 - 480 617.2 178~190
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
