  4. META TR 29 SIGNATURE
META TR

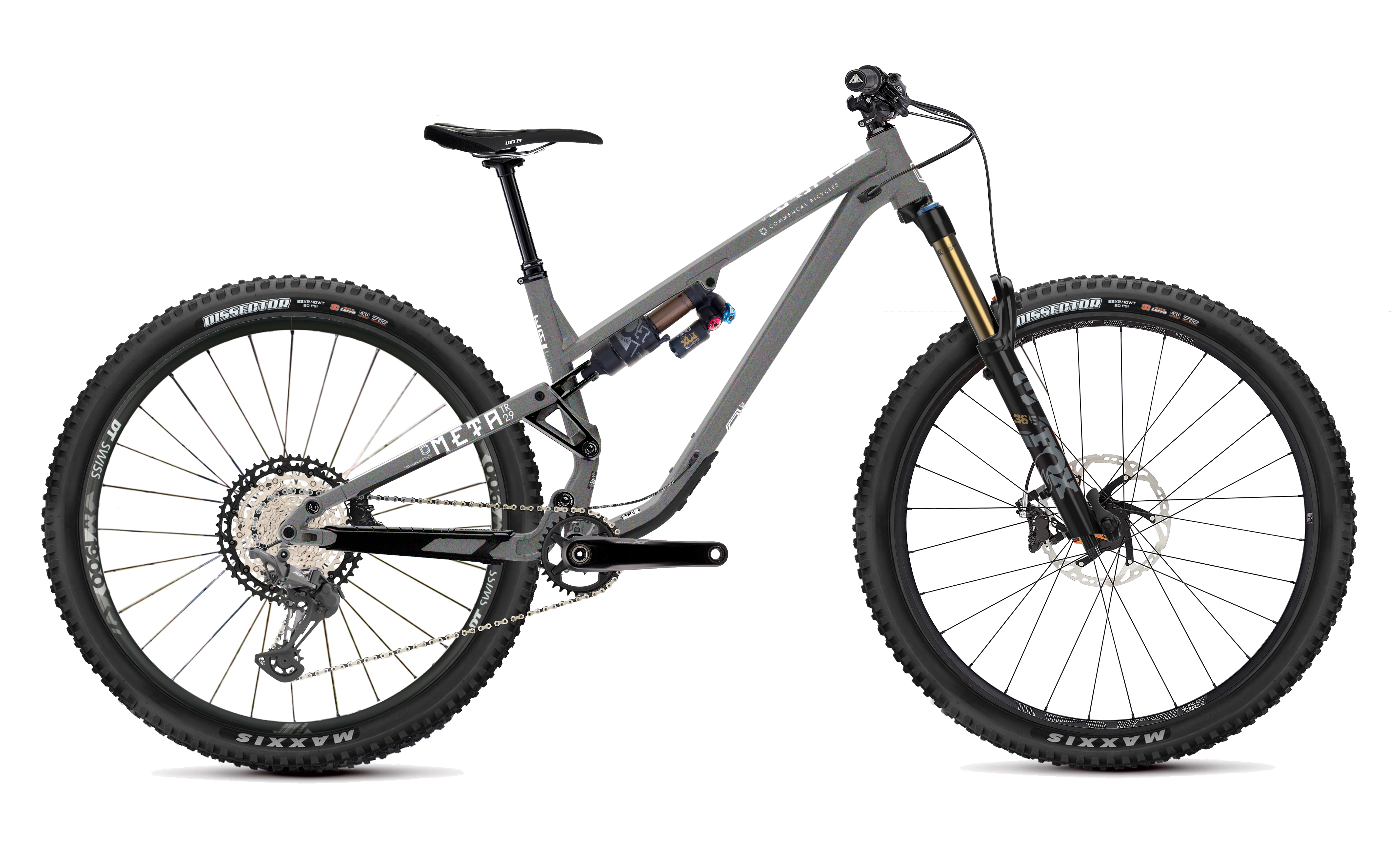

META TR 29 SIGNATURE

¥879,780（本体価格¥799,800）完成車
サイズ：S, M, L, XL
Black White

SPECIFICATIONS

Frame 2021 META TR 29, 140mm travel
Shock FOX Float X2 Factory, Neutral Stickers
Fork FOX 36 Factory Fit Grip 2, 160mm, Neutral Stickers
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 50mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SHIMANO XT, 2 pistons, 203mm
Shifters SHIMANO XT, 12sp
Rear derailleur SHIMANO XT, 12sp
Bottom Bracket SHIMANO Pressfit
Cranks SHIMANO XT, 12sp, 170mm
Chainring SHIMANO XT, 32t
Chain SHIMANO XT, 12sp
Cassette SHIMANO XT, 12sp, 10-51t
Wheels DT SWISS XM 1700, 30mm inner width
Front Tire MAXXIS Dissector, 29x2.40WT, EXO
Rear Tire MAXXIS Dissector, 29x2.40WT, EXO+
Seatposts KINDSHOCK Lev Integra, 34.9mm
Saddle WTB Silverado Narrow
Accessories Down tube protector, chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors Matte Graphite

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 78.6 64.5 110 1203 566 435 -33 561   440 626 160~172
M 420 78.6 64.5 115 1230 592 435 -33 561   465 630 170~182
L 440 78.6 64.5 120 1257 618 435 -33 561   490 634 180~192
XL 460 78.6 64.5 125 1284 644 435 -33 561   515 638 190~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
