  4. META TR 29 RACE
META TR

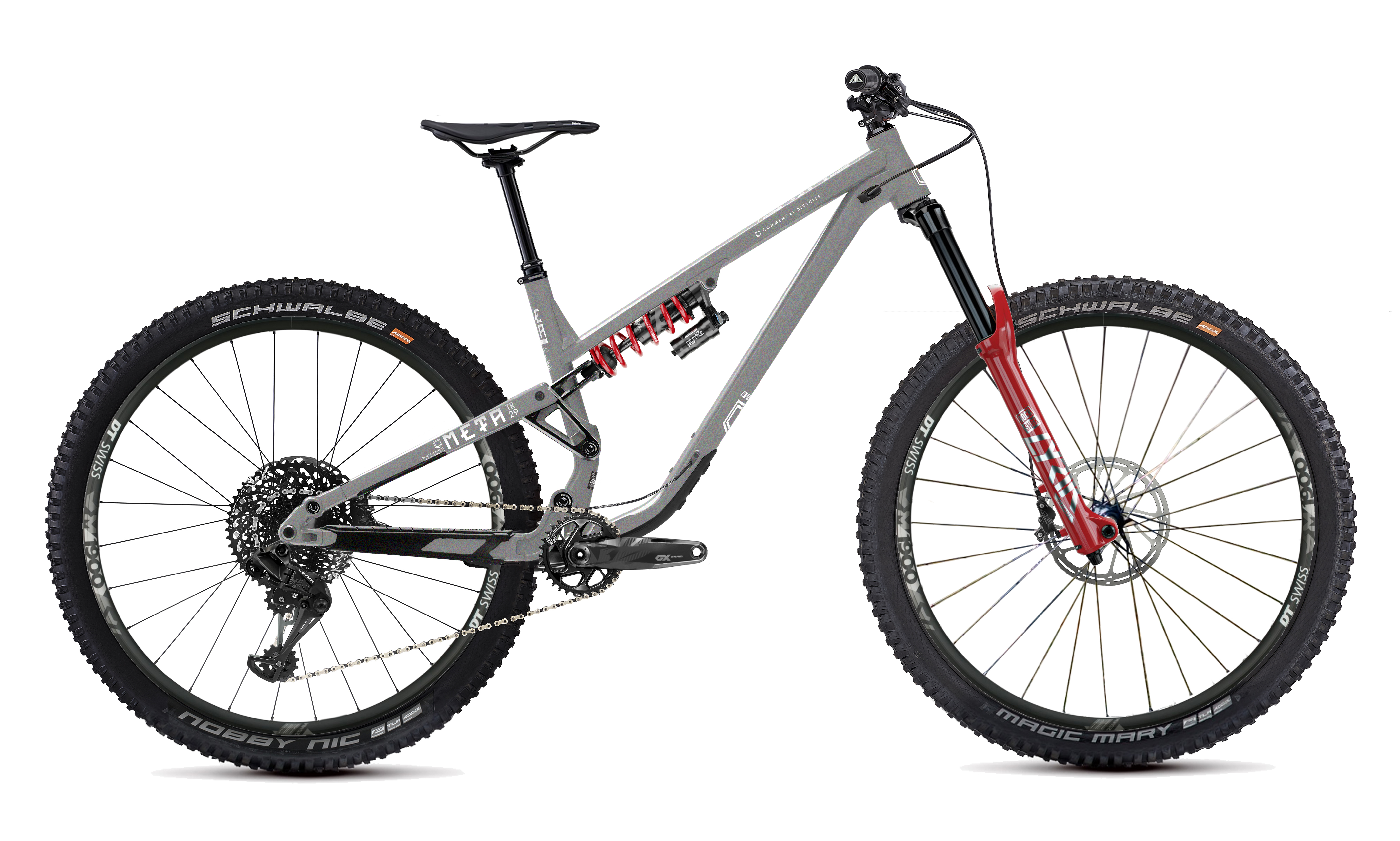

META TR 29 RACE

¥769,780（本体価格¥699,800）完成車
サイズ：S, M, L, XL
Matte Graphite

SPECIFICATIONS

Frame 2021 META TR 29, 140mm travel
Shock ROCKSHOX Super Deluxe Ultimate, Coil
Fork ROCKSHOX Lyrik Ultimate, 160mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 50mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SRAM G2 RS, 200mm
Shifters SRAM GX Eagle, 12sp
Rear derailleur SRAM GX Eagle, 12sp
Bottom Bracket SRAM DUB Pressfit
Cranks SRAM GX Eagle, 12sp, 170mm
Chainring SRAM GX Eagle, 32t
Chain SRAM GX Eagle, 12sp
Cassette SRAM GX Eagle, 12sp, 10-52t
Wheels DT SWISS M 1900 Spline, 30mm inner width
Front Tire SCHWALBE Magic Mary, 29x2.40, Super Trail
Rear Tire SCHWALBE Nobby Nic, 29x2.40, Super Trail
Seatposts KINDSHOCK Lev Integra, 34.9mm
Saddle FABRIC Scoop Flat Elite
Accessories Down tube protector, chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors Matte Graphite

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 78.6 64.5 110 1203 566 435 -33 561   440 626 160~172
M 420 78.6 64.5 115 1230 592 435 -33 561   465 630 170~182
L 440 78.6 64.5 120 1257 618 435 -33 561   490 634 180~192
XL 460 78.6 64.5 125 1284 644 435 -33 561   515 638 190~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
