  4. META TR 29 ORIGIN
META TR

META TR 29 ORIGIN

¥439,780（本体価格¥399,800）完成車
サイズ：S, M, L, XL

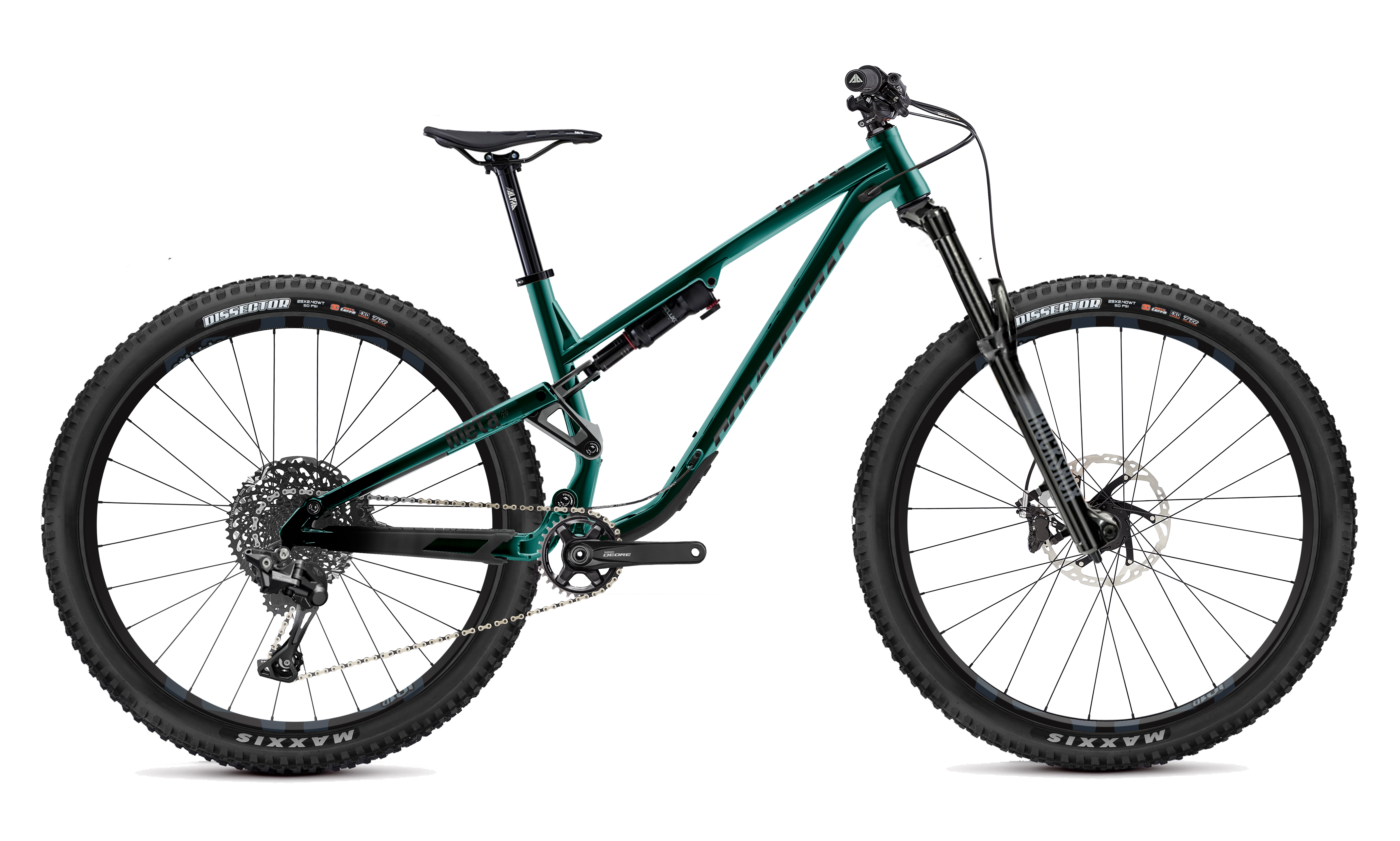

British Racing Green

British Racing Green

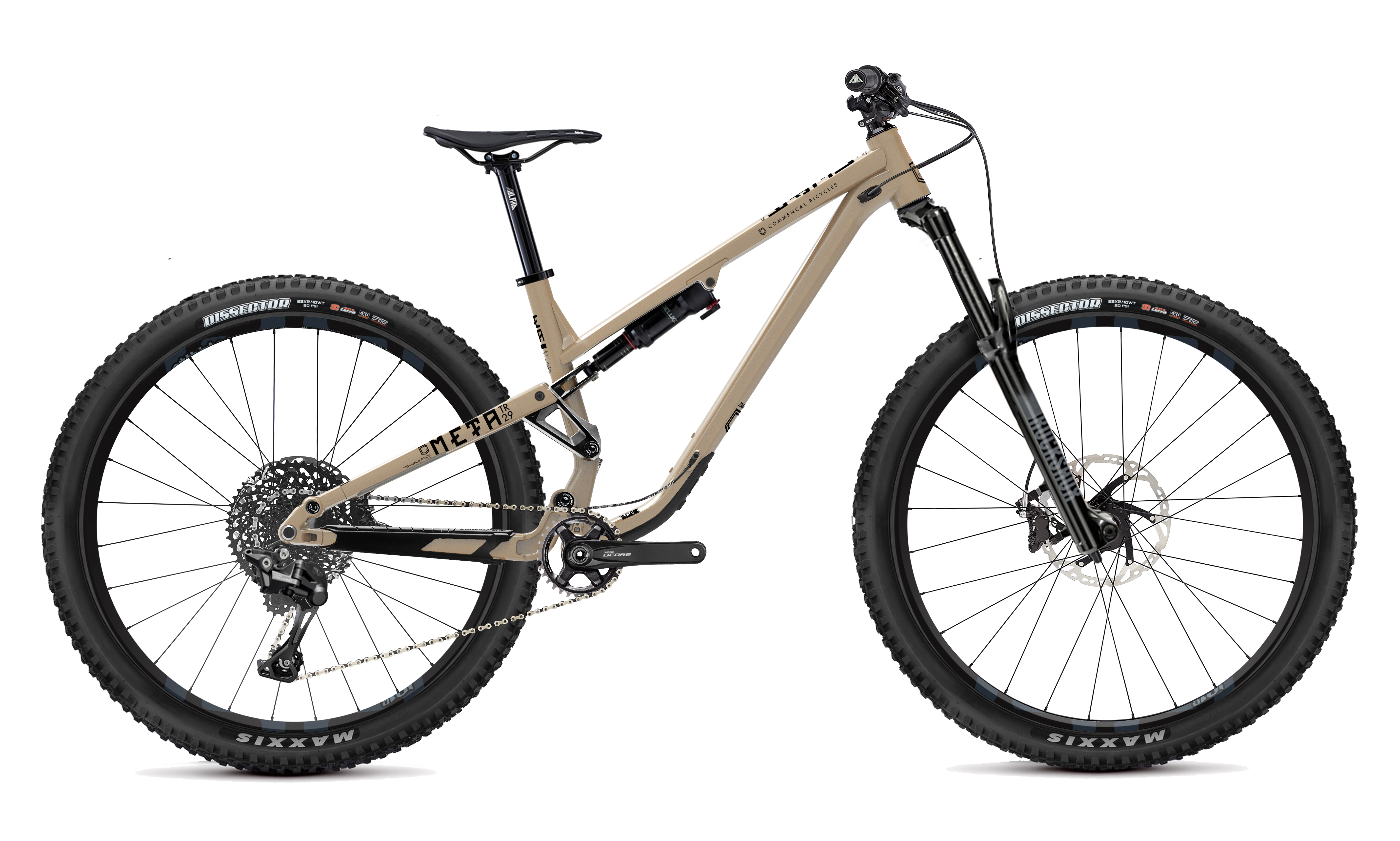

Sand

Sand

British Racing Green サムネイル
Sand サムネイル

SPECIFICATIONS

Frame 2021 META TR 29, 140mm travel
Shock ROCKSHOX Deluxe Select
Fork ROCKSHOX 35 Silver, 150mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 50mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SHIMANO MT501, 2 pistons, 203mm
Shifters SHIMANO DEORE, 11sp
Rear derailleur SHIMANO DEORE, 11sp
Bottom Bracket SHIMANO Pressfit
Cranks SHIMANO DEORE, 170mm
Chainring SHIMANO Deore, 32t
Chain KMC X11, 11sp
Cassette SHIMANO DEORE, 11sp, 11-51t
Rims E13 LG1 EN Base, 30mm inner width
Hubs FORMULA, sealed bearings
Spokes SAPIM Leader 2.0
Front Tire MAXXIS Dissector, 29x2.40WT, EXO, TR
Rear Tire MAXXIS Dissector, 29x2.40WT, EXO, TR
Seatposts RIDE ALPHA, 34.9mm
Saddle FABRIC Scoop Flat Sport V2
Accessories Down tube protector, chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors British Racing Green, Sand

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 78.6 64.5 110 1203 566 435 -33 561   440 626 160~172
M 420 78.6 64.5 115 1230 592 435 -33 561   465 630 170~182
L 440 78.6 64.5 120 1257 618 435 -33 561   490 634 180~192
XL 460 78.6 64.5 125 1284 644 435 -33 561   515 638 190~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
