2. BIKES
  3. HARDTAIL
  4. META HT AM ORIGIN
META HT

META HT AM ORIGIN

¥203,280（本体価格¥184,800）完成車
サイズ：S, M, L, XL

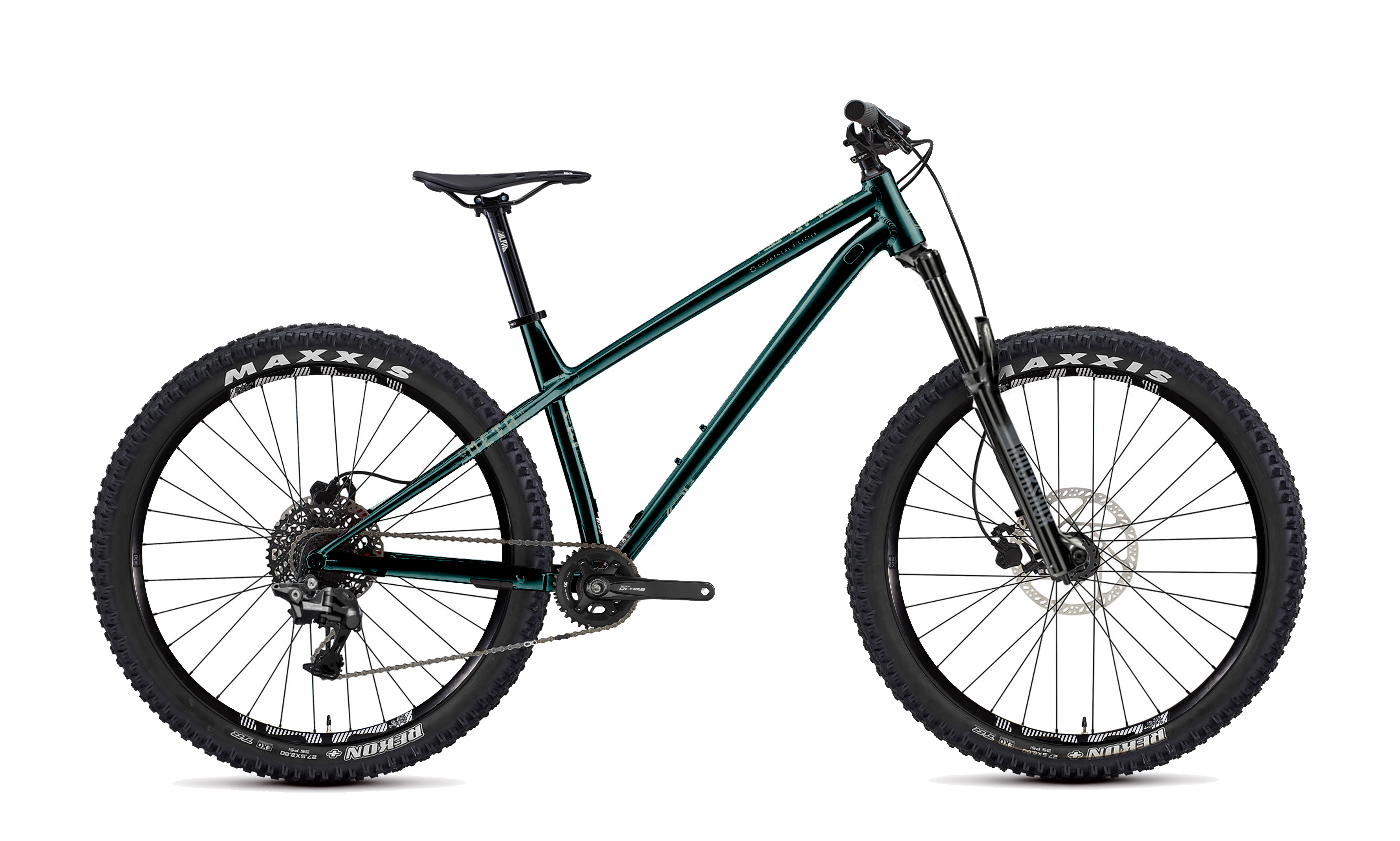

British Racing Green

British Racing Green

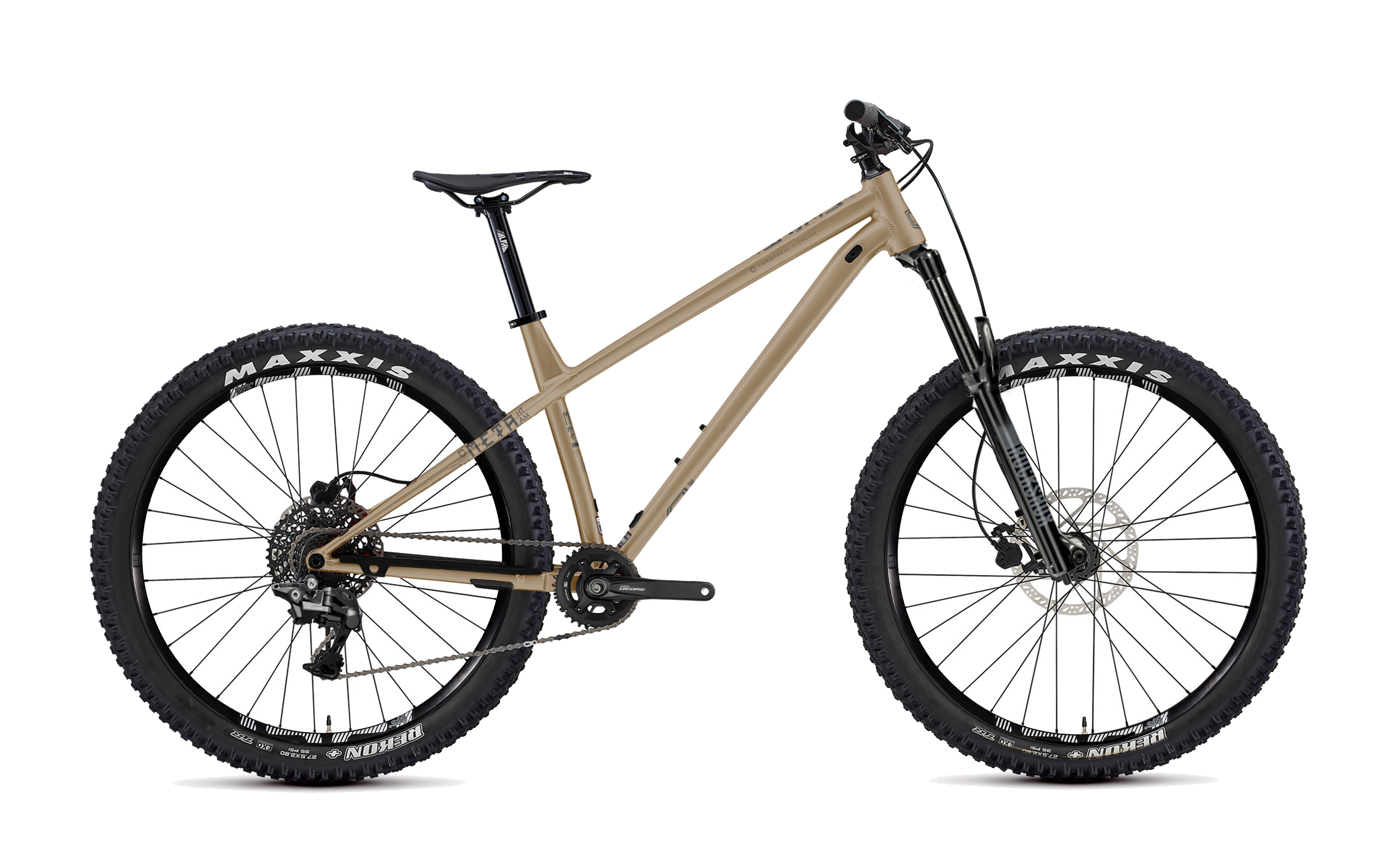

Sand

Sand

British Racing Green サムネイル
Sand サムネイル

SPECIFICATIONS

Frame 2021 META HT AM
Fork ROCKSHOX 35 Silver R, 160mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 40mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes TEKTRO HD-M275, 203mm / 180mm
Shifters SHIMANO Deore, 10sp
Rear derailleur SHIMANO Deore, 10sp
Bottom Bracket SHIMANO BSA
Cranks SHIMANO Deore, 170mm, 32t
Chain KMC X10, 10sp
Cassette SHIMANO Deore, 10sp, 11-46t
Rims E13 LG1 EN Base, 35mm inner width
Hubs FORMULA, sealed bearings
Spokes SAPIM Leader, 2.0
Front Tire MAXXIS High Roller II, 27.5x2.80WT, EXO, TR
Rear Tire MAXXIS Reckon, 27.5x2.80WT, EXO, TR
Seatposts RIDE ALPHA, 31.8mm
Saddle FABRIC Scoop Flat Sport V2
Accessories Chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors British Racing Green, Sand

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 74 65 115 1156 581 432 -40 555 725 400 630 155-168
M 420 74 65 120 1178 602 432 -40 555 735 420 634 165-178
L 465 74 65 125 1205 628 432 -40 555 747 445 639 175-188
XL 490 74 65 130 1232 655 432 -40 555 796 470 643 185~200
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
