META AM

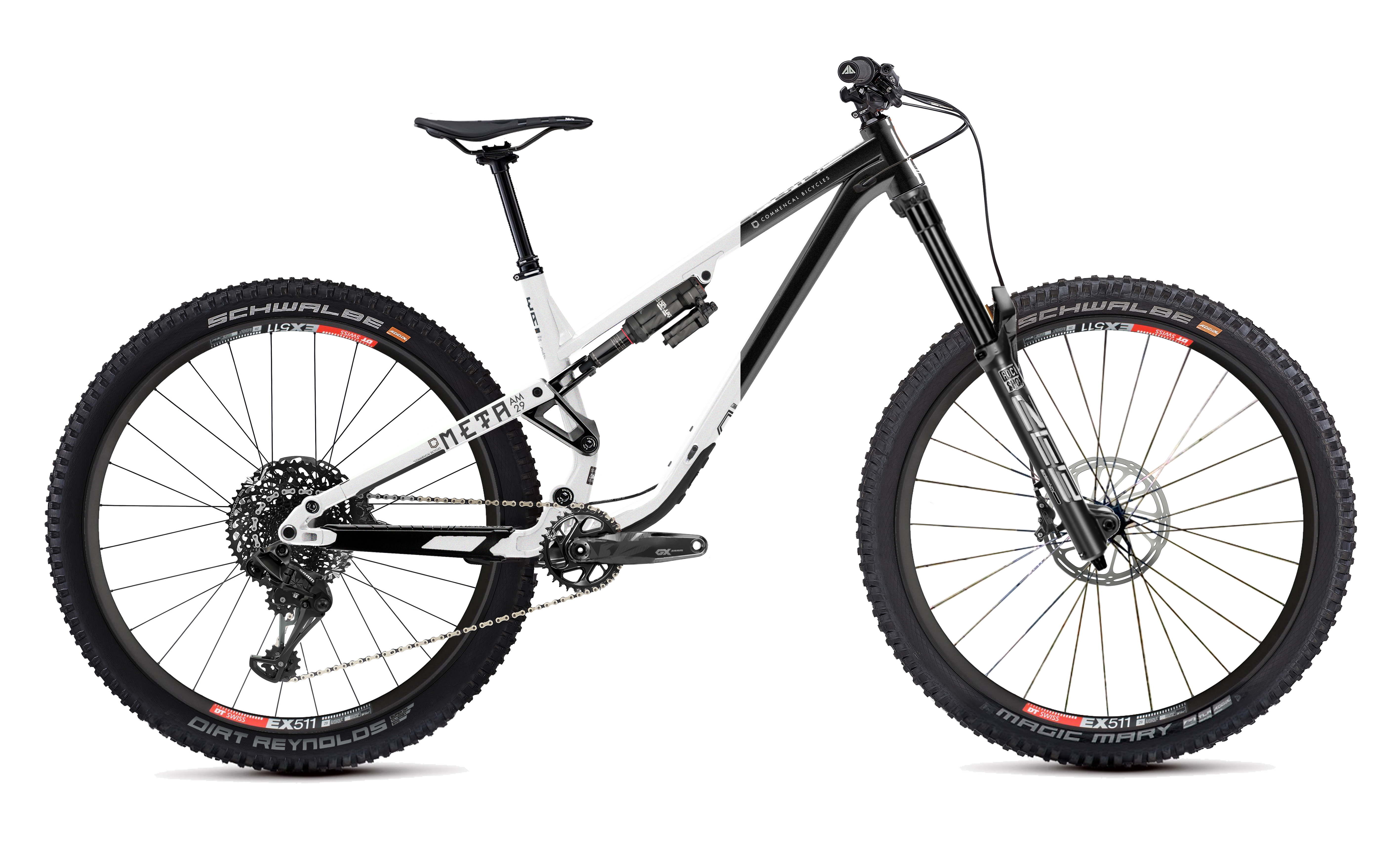

META AM 29 TEAM

¥824,780（本体価格¥749,800）完成車
サイズ：S, M, L, XL
Black White

SPECIFICATIONS

Frame 2021 META AM 29, 160mm travel
Shock ROCKSHOX Super Deluxe Select Ultimate
Fork ROCKSHOX ZEB Ultimate, 170mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 40mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SRAM CODE RSC, 200mm
Shifters SRAM GX Eagle, 12sp
Rear derailleur SRAM GX Eagle, 12sp
Bottom Bracket SRAM DUB Pressfit
Cranks SRAM GX Eagle, 12sp, 170mm
Chainring SRAM GX Eagle, 32t
Chain SRAM GX Eagle, 12sp
Cassette SRAM GX Eagle, 12sp, 10-52t
Wheels DT SWISS EX 511 / DT 350 / DT Comp Spokes, custom wheelset
Front Tire SCHWALBE Magic Mary, 29x2.40, Super Trail
Rear Tire SCHWALBE Big Betty, 29x2.40, Super Trail
Seatposts KINDSHOCK Lev Integra, 34.9mm
Saddle FABRIC Scoop Flat Elite
Accessories Down tube protector, chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors Black & White

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 78.5 63.6 115 1231 573 433 -21 586   445 633 162~175
M 420 78.5 63.6 120 1258 600 433 -21 586   470 638 172~185
L 440 78.5 63.6 125 1285 626 433 -21 586   495 642 182~195
XL 460 78.5 63.6 130 1312 652 433 -21 586   520 647 192~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
