  4. META AM 29 SIGNATURE
META AM

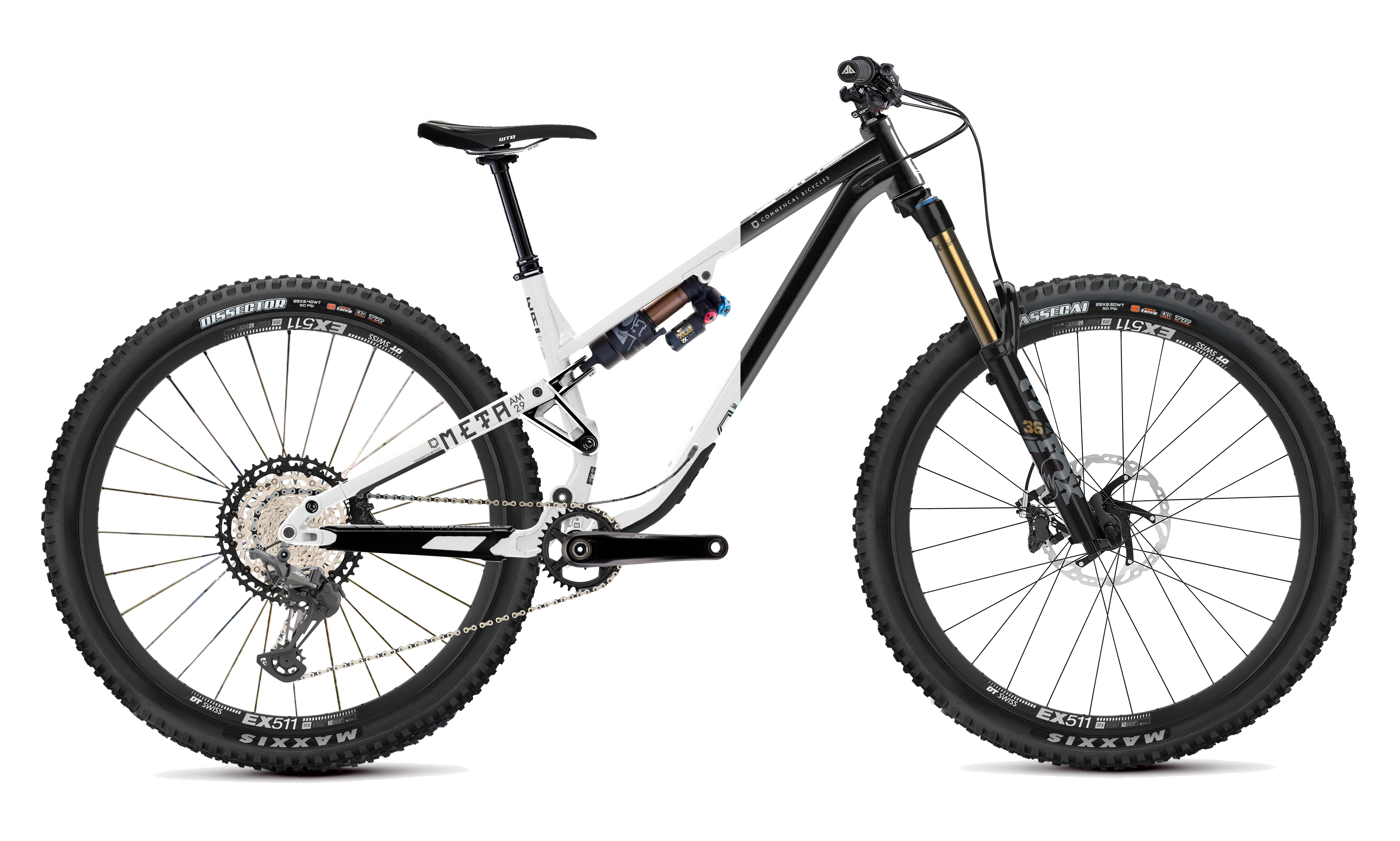

META AM 29 SIGNATURE

¥934,780（本体価格¥849,800）完成車
サイズ：S, M, L, XL
Black White

SPECIFICATIONS

Frame 2021 META AM 29, 160mm travel
Shock FOX Float X2 Factory, Neutral Stickers
Fork FOX 38 Factory Fit Grip 2, 170mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 40mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SHIMANO XT, 4 pistons, 203mm
Shifters SHIMANO XT, 12sp
Rear derailleur SHIMANO XT, 12sp
Bottom Bracket SHIMANO Pressfit
Cranks SHIMANO XT, 170mm
Chainring SHIMANO XT, 32t
Chain SHIMANO XT, 12sp
Cassette SHIMANO XT, 12sp, 10-51t
Wheels DT SWISS EX 511 / DT 350 / DT Comp Spokes
Front Tire MAXXIS Assegai, 29x2.50WT, 3C, EXO+, TR
Rear Tire MAXXIS Dissector, 29x2.40WT, EXO+, TR
Seatposts KINDSHOCK Lev Integra, 34.9mm
Saddle WTB Silverado Narrow
Accessories Down tube protector, chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors Black / White

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 78.5 63.6 115 1231 573 433 -21 586   445 633 162~175
M 420 78.5 63.6 120 1258 600 433 -21 586   470 638 172~185
L 440 78.5 63.6 125 1285 626 433 -21 586   495 642 182~195
XL 460 78.5 63.6 130 1312 652 433 -21 586   520 647 192~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
