  4. META AM 29 ORIGIN
META AM

META AM 29 ORIGIN

¥494,780（本体価格¥449,800）完成車
サイズ：S, M, L, XL
GUN METAL

Graphite Blue

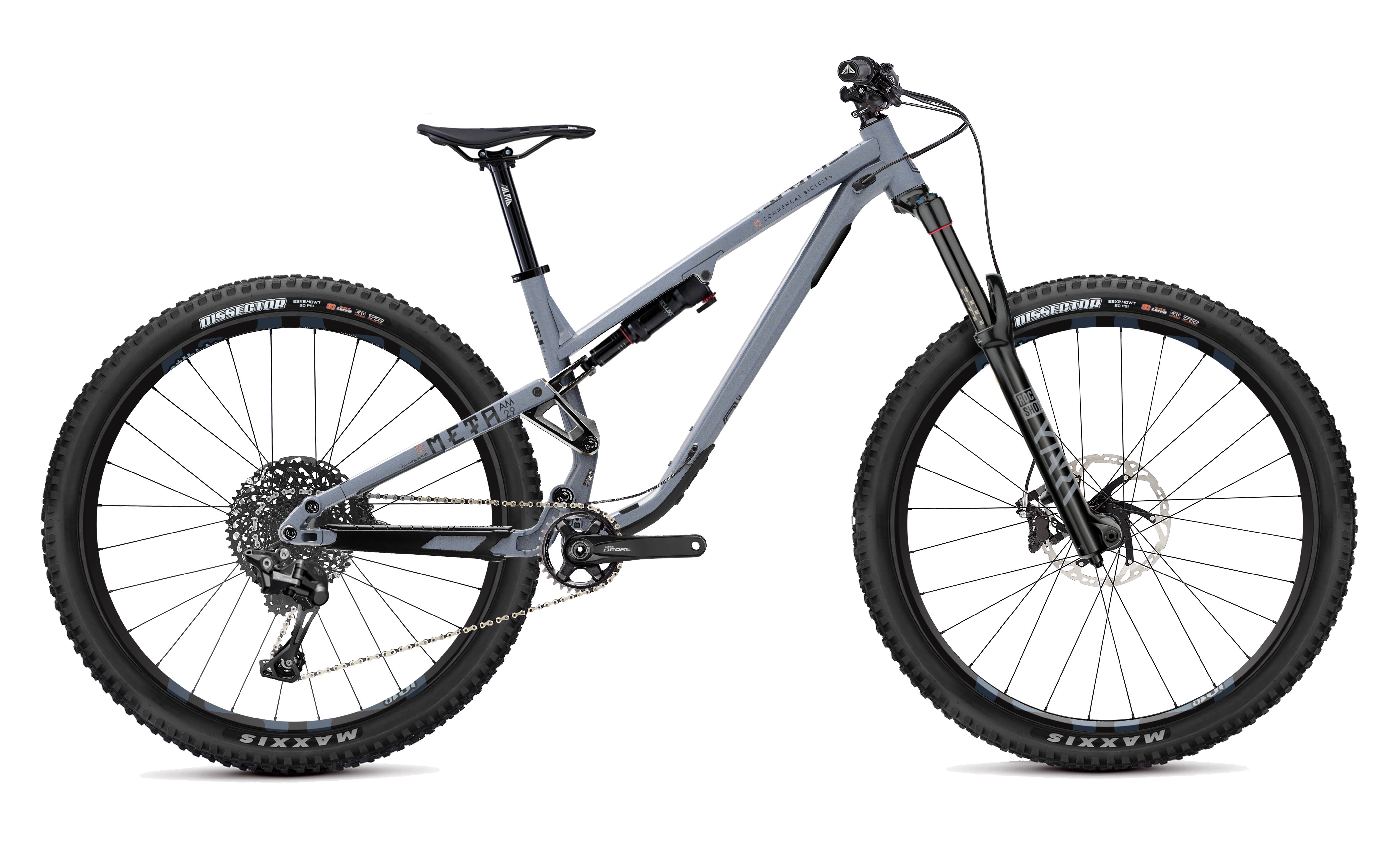

GUN METAL

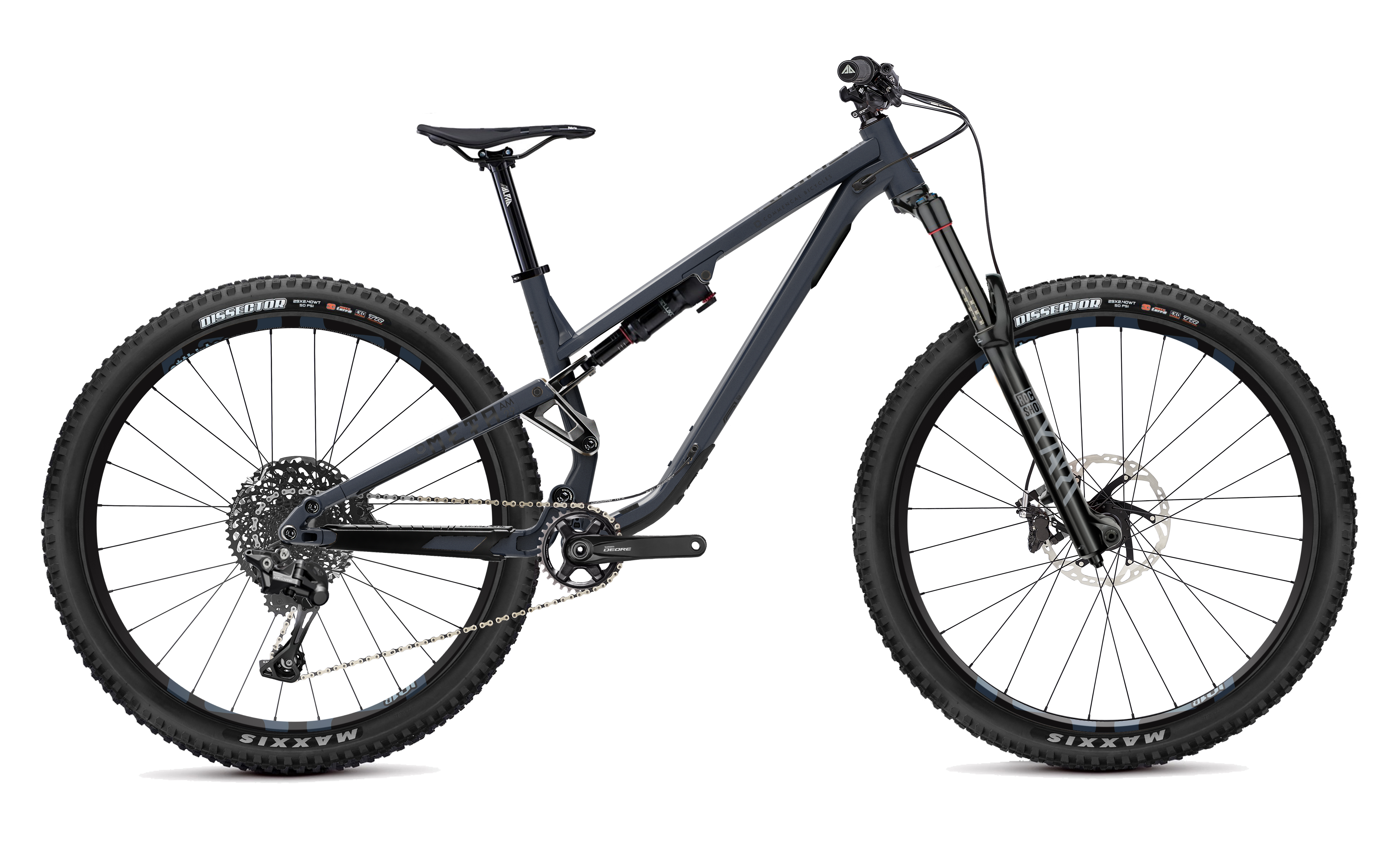

Slate Grey

Heritage Green サムネイル
Gunmetal サムネイル

SPECIFICATIONS

Frame 2021 META AM 29, 160mm travel
Shock ROCKSHOX Deluxe Select
Fork ROCKSHOX Yari RC, 170mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 40mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SHIMANO MT501, 2 pistons, 203mm
Shifters SHIMANO DEORE, 11sp
Rear derailleur SHIMANO DEORE, 11sp
Bottom Bracket SHIMANO Pressfit
Cranks SHIMANO DEORE, 11sp, 170mm
Chainring SHIMANO Deore, 32t
Chain KMC X11, 11sp
Cassette SHIMANO DEORE, 11sp, 11-51t
Rims E13 LG1 DH Base, 30mm inner width
Hubs FORMULA, sealed bearings
Spokes DT SWISS Competition 2.0 / 1.8 / 2.0
Front Tire MAXXIS Assegai, 29x2.50WT, 3C, EXO, TR
Rear Tire MAXXIS Dissector, 29x2.40WT, 3C, EXO+, TR
Seatposts RIDE ALPHA, 34.9mm
Saddle FABRIC Scoop Flat Sport V2
Accessories Down tube protector, chainstay protector, seatstay protector
Sizes S/M/L/XL
Colors Graphite Blue, Slate Grey

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 78.5 63.6 115 1231 573 433 -21 586   445 633 162~175
M 420 78.5 63.6 120 1258 600 433 -21 586   470 638 172~185
L 440 78.5 63.6 125 1285 626 433 -21 586   495 642 182~195
XL 460 78.5 63.6 130 1312 652 433 -21 586   520 647 192~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
