CLASH

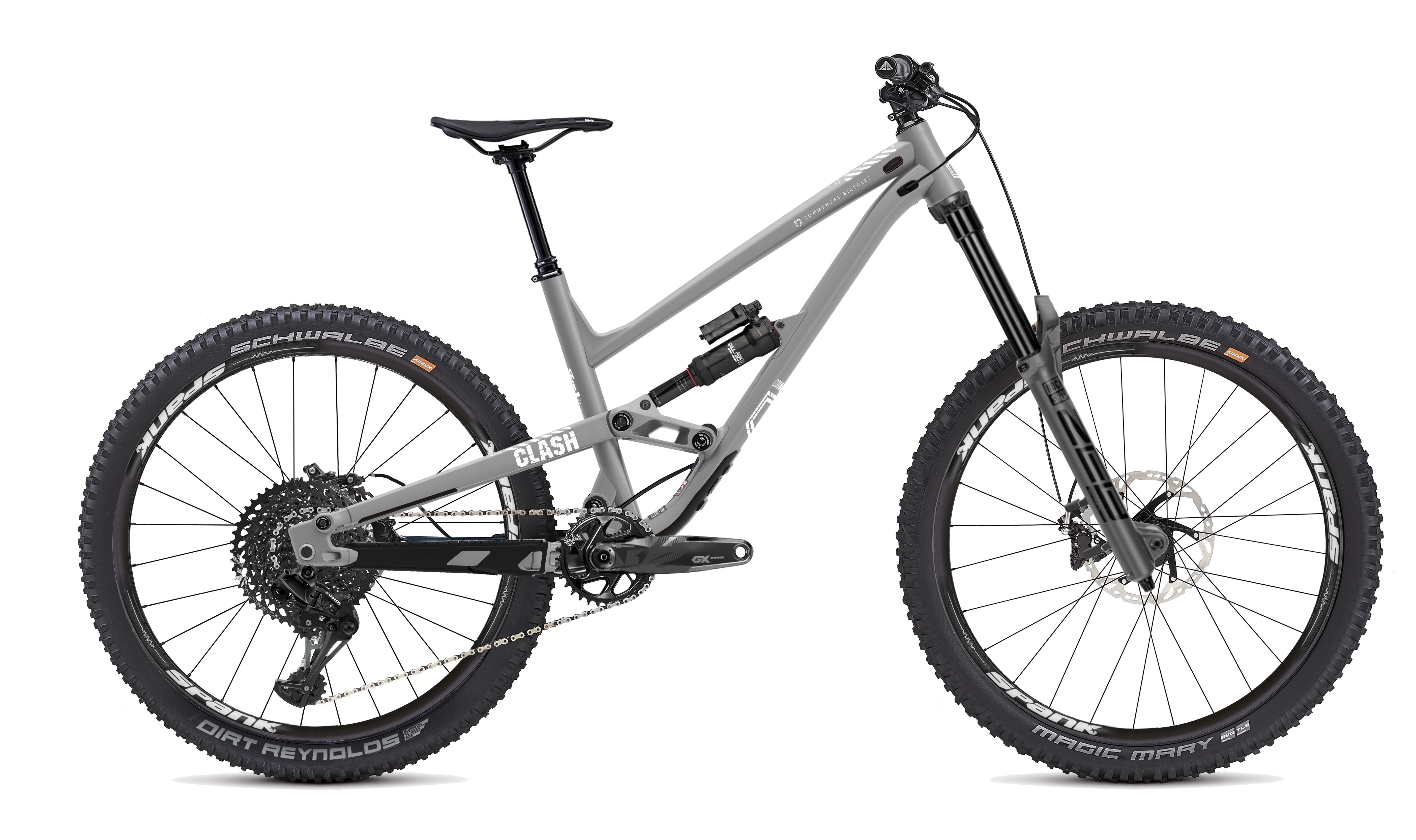

CLASH RACE

¥769,780（本体価格¥699,800）完成車
サイズ：S, M, L, XL
GRAPHITE

SPECIFICATIONS

Frame 2021 CLASH, 170mm travel
Shock ROCKSHOX SuperDeluxe Ultimate
Fork ROCKSHOX ZEB Ultimate, 180mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 40mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SHIMANO SLX 4 pistons, 203mm
Shifters SRAM GX Eagle, 12sp
Rear derailleur SRAM GX Eagle, 12sp
Bottom Bracket SRAM DUB Pressfit
Cranks SRAM GX Eagle, 170mm
Chainring SRAM GX Eagle, 34t
Chain SRAM GX Eagle, 12sp
Cassette SRAM GX Eagle, 12sp, 10-52t
Wheels SPANK Spike Race 33, 28mm inner width
Front Tire SCHWALBE Magic Mary 27.5x2.4, Super Trail
Rear Tire SCHWALBE Big Betty, 27.5x2.4, Super Trail
Seatposts KINDSHOCK Lev Integra, 34.9mm
Saddle FABRIC Scoop Flat Elite
Accessories Down tube protector, chainstay protector, seatstay protector, pick-up pad
Sizes S/M/L/XL
Colors Matte Graphite

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 77.2 64 110 1216 586 434 -12 572 728 445 619 162~175
M 418 77.2 64 115 1238 607 434 -12 572 733 465 624 172~185
L 440 77.2 64 120 1265 633 434 -12 572 730 490 628 182~195
XL 465 77.2 64.5 125 1292 666 434 -12 572 735 520 635 192~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
