CLASH

CLASH FRAMES

Heritage Green, Dirt, Matte Graphite / ¥241,780（本体価格¥219,800）フレーム
High Polished / ¥252,780（本体価格¥229,800）フレーム
サイズ：S, M, L, XL

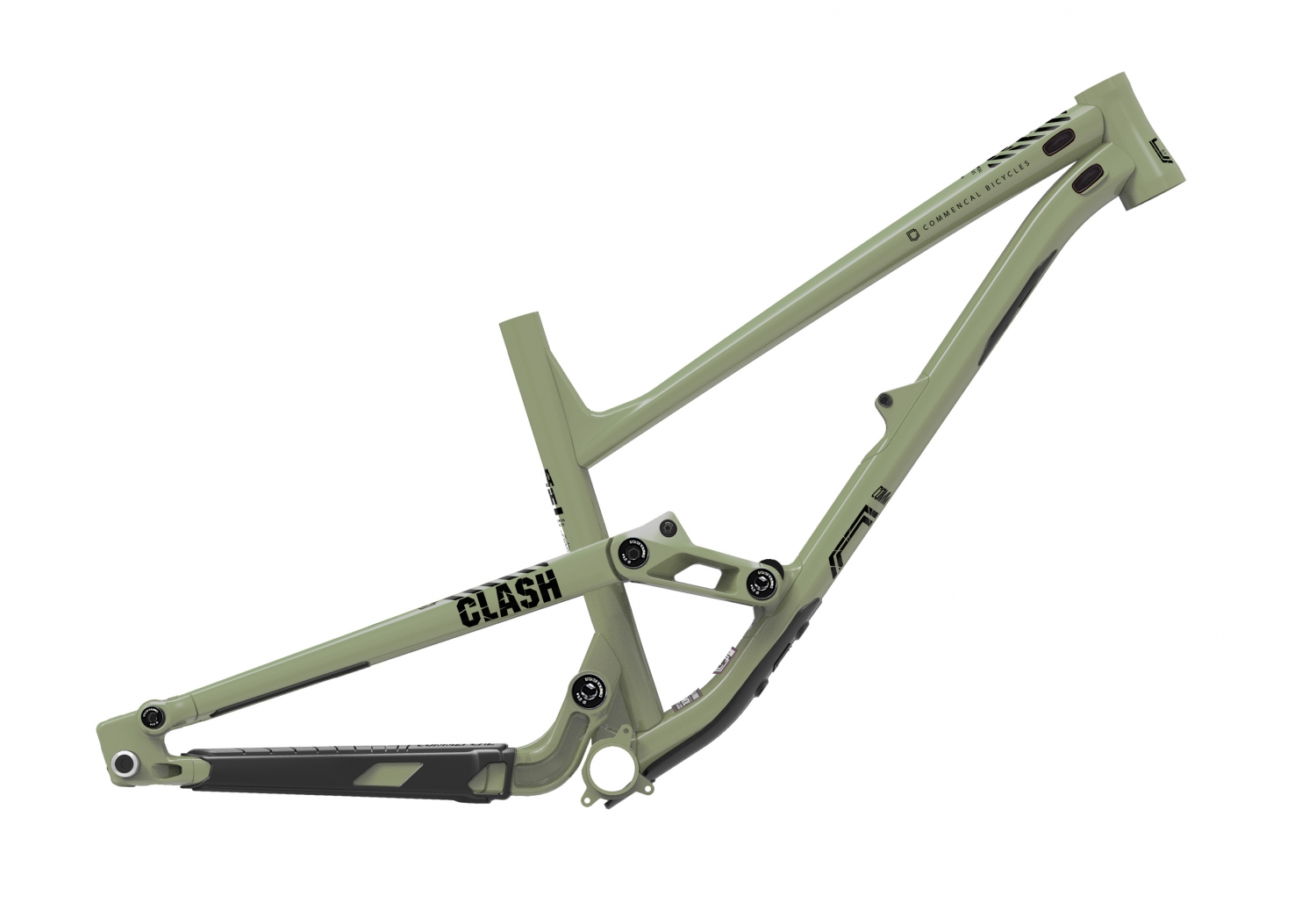

Heritage Green

Heritage Green

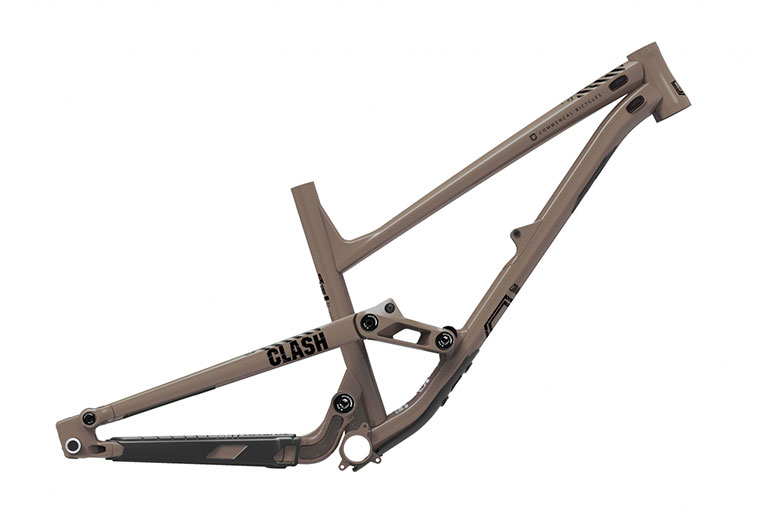

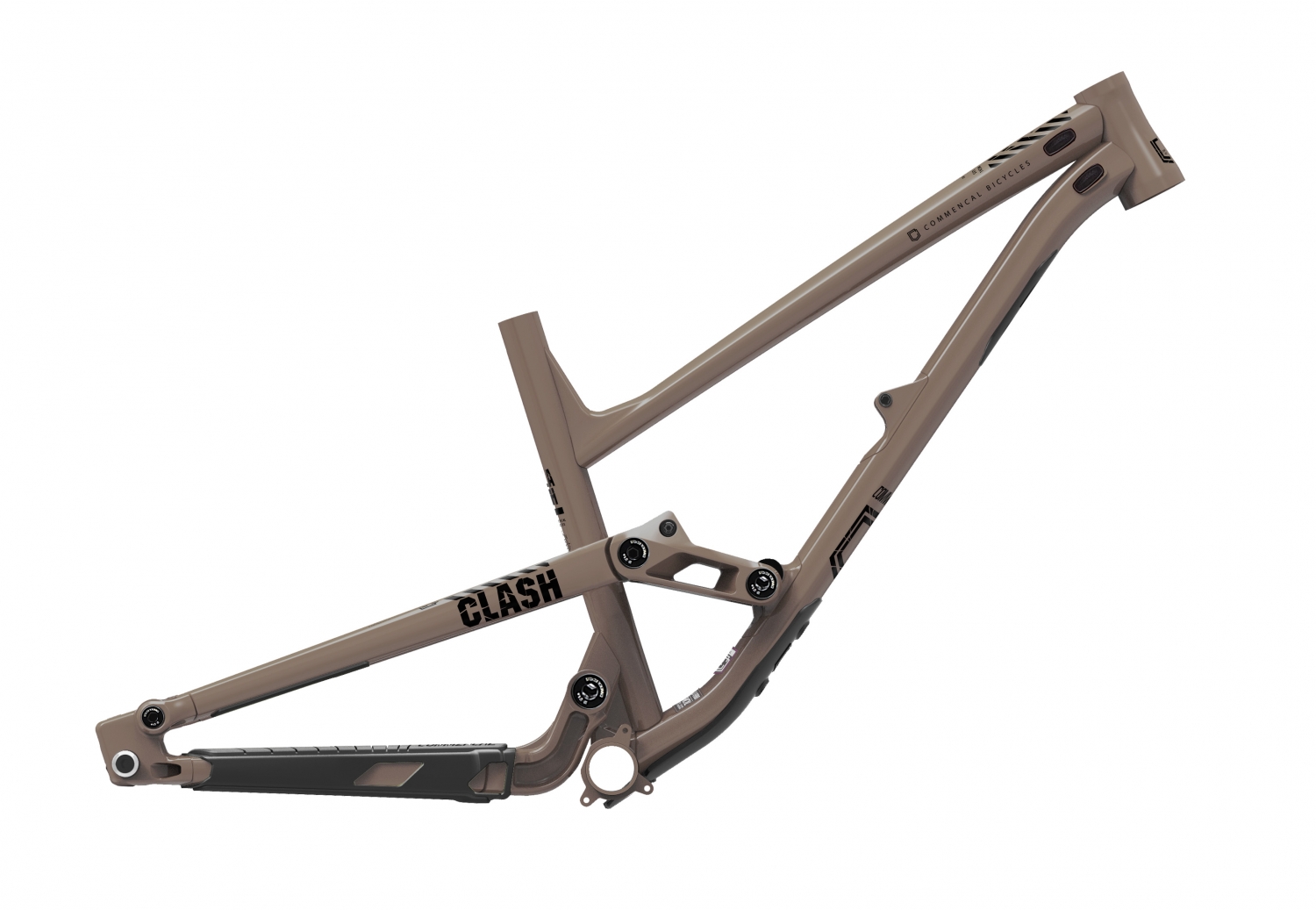

Dirt

Dirt

High Polished

High Polished

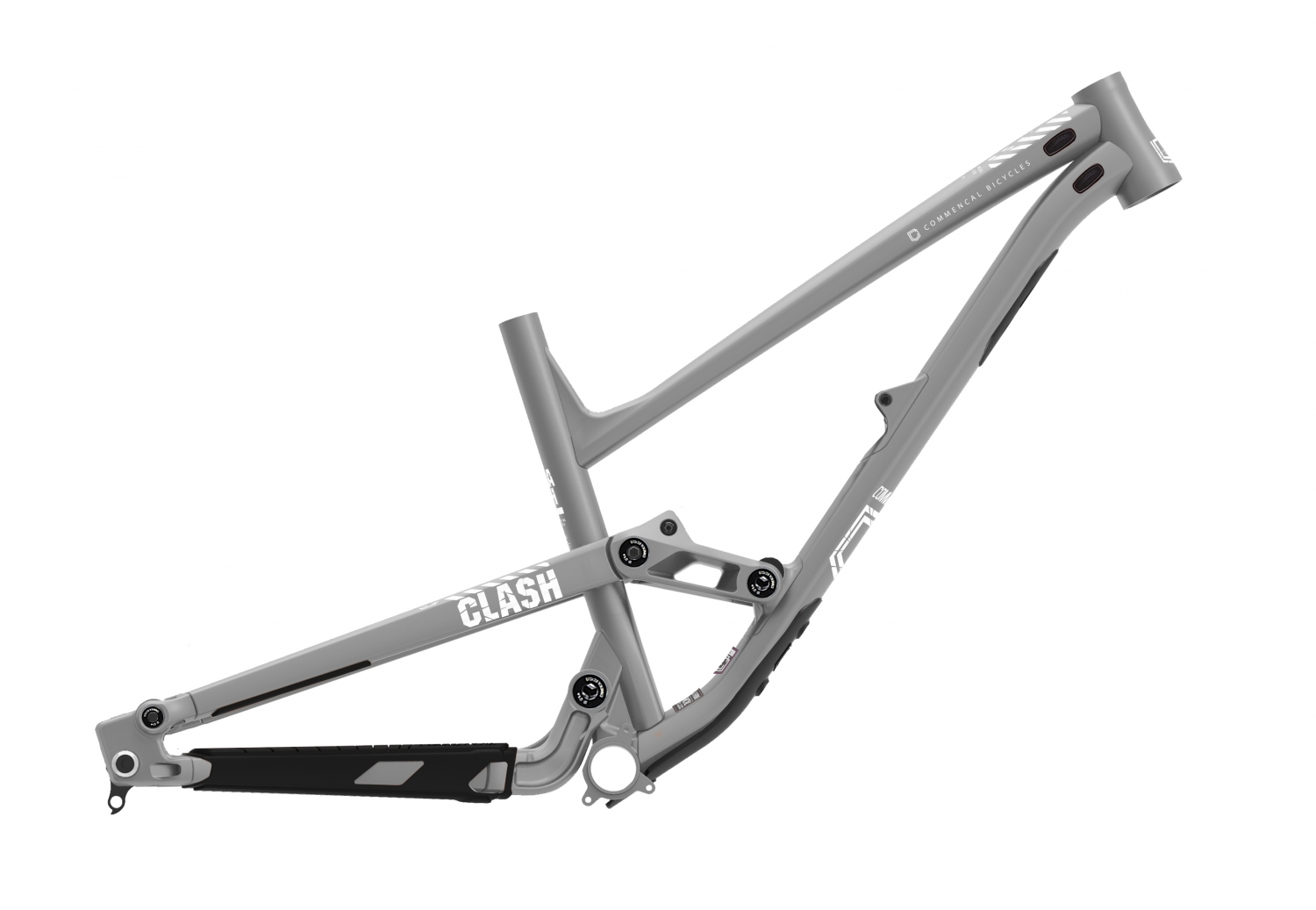

Matte Graphite

Matte Graphite

Heritage Green サムネイル
Slate Grey サムネイル
High Polished サムネイル
Matte Graphite サムネイル

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 77.2 64 110 1216 586 434 -12 572 728 445 619 162~175
M 418 77.2 64 115 1238 607 434 -12 572 733 465 624 172~185
L 440 77.2 64 120 1265 633 434 -12 572 730 490 628 182~195
XL 465 77.2 64.5 125 1292 666 434 -12 572 735 520 635 192~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
