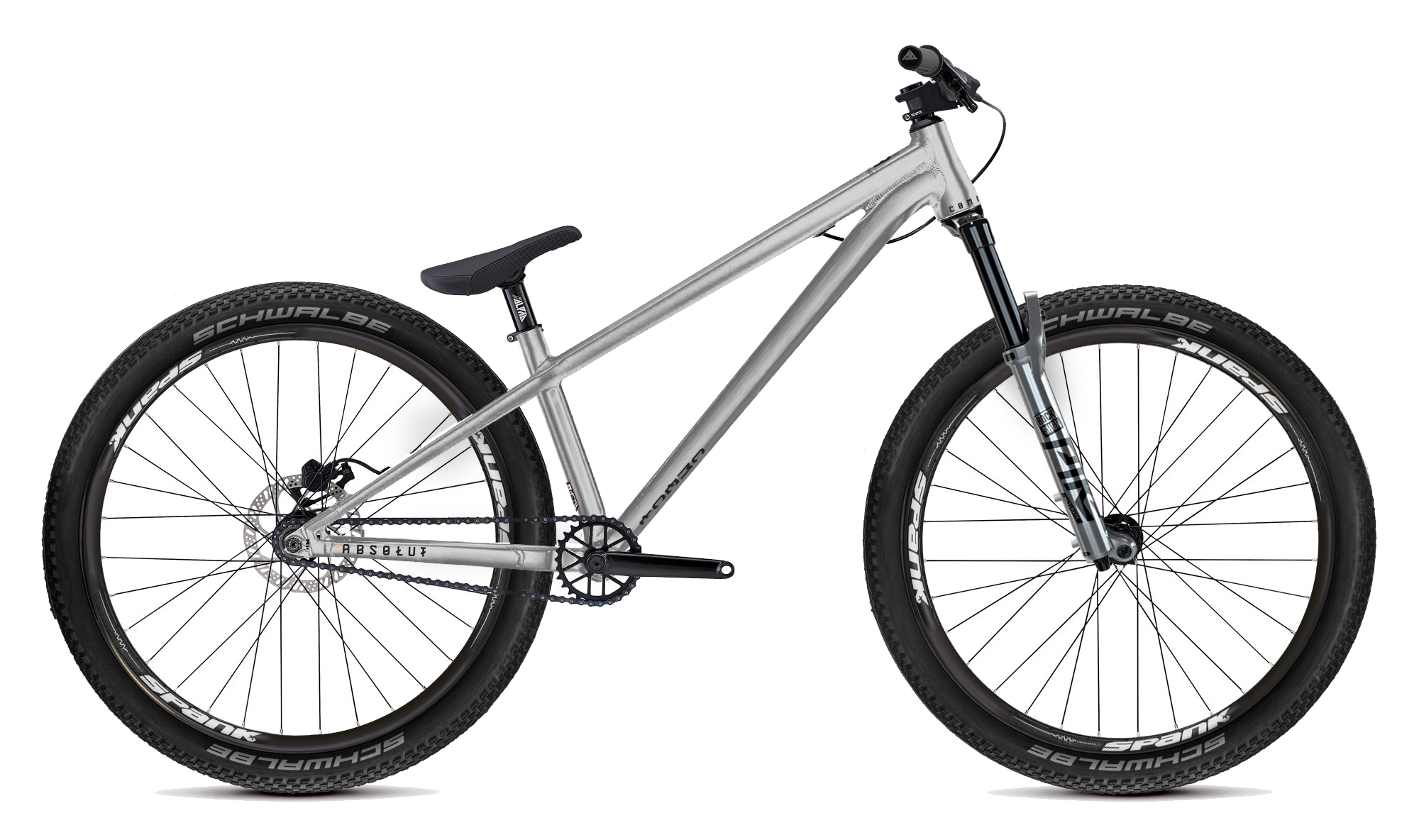

ABSOLUT

ABSOLUT RS

¥362,780（本体価格¥329,800）完成車
サイズ：S, M, L
Polar Sliver

SPECIFICATIONS

Frame ABSOLUT 2021
Fork ROCKSHOX PIKE DJ, 100mm travel
Headset ACROS Alloy cups ZS44/ZS56
Stem SPANK SPLIT, 31.8mm, 38mm length
Bar SPANK SPOON, 40mm rise, 760mm, 31,8mm
Grips RIDE ALPHA, DH Grips, Black
Brakes SRAM GUIDE T, 160mm
Bottom Bracket Threaded Euro BB
Cranks BMX type Cr-Mo, 170mm
Chainring 28t
Chain KMC Z1 WIDE
Cassette 11t Cr-Mo
Wheels SPANK Spike Race 33, 28mm inner width
Front Tire SCHWALBE Billy Bonkers, Performance Line, Addix 26x2.1
Rear Tire SCHWALBE Billy Bonkers, Performance Line, Addix 26x2.1
Seatposts RIDE ALPHA DJ, 31.6 mm
Saddle COMMENCAL DJ, soft padding
Accessories Mechanical front brake
Sizes S, M, L
Colors Polar Sliver

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 310 72 69 120 1037 577 390 -25 470 672 395 566 155~170
M 310 72 69 120 1057 597 390 -25 470 672 415 566 165~185
L 310 72 69 120 1082 622 390 -25 470 672 440 566 175~195
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
